Plastic Lid Thermoforming Machine (PS/PET/PVC)

Roll-fed plastic thermoforming machine for making various cup lids and food container lids

This thermoforming machine is designed to process HIPS, PET, and PVC sheets into a variety of cup lids and food container lids. In addition to lids, it can also produce small trays and similar packaging products, making it a flexible solution for disposable plastic packaging.

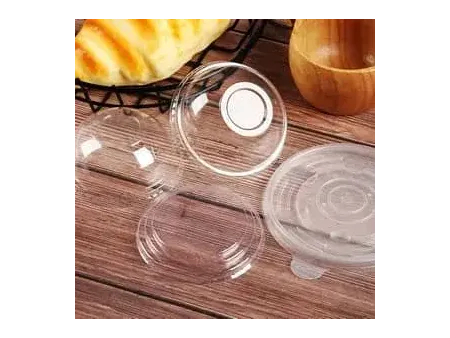

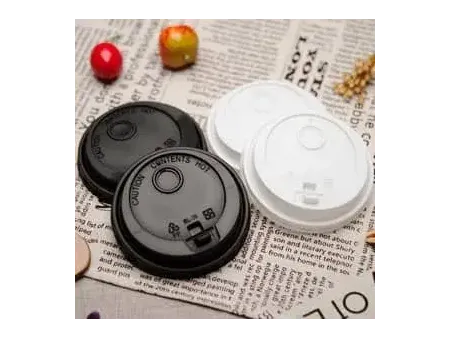

Sample Showcase

Technical Specifications

Model	ATC-45/16	ATC-45/28
Max. forming area	450×160mm	450×280mm
Max. forming depth	45mm	45mm
Applicable material	HIPS/PVC/PET
Cutting frequency	15-25 cycles/min
Stroke adjustable range	0-160mm
Total power	15kW	18kW
Air consumption	>0.2m³/min
Air pressure	0.4-0.7MPa
Power supply	380V/50Hz
Machine dimensions (L×W×H)	2400×900×1600mm	2500×1100×1600mm
Machine weight	1100kg	1300kg

Working Process

Roller
Heating
Forming
Hole punch
Cutting
Stackng
Rewinding

Features

Production is limited to PET, PS and PVC materials
Requires minimal capital investment, offering significant cost advantages
Versatile application capable of producing lids, trays, hinged boxes and multiple other products
Mature and reliable equipment with compact footprint for convenient transportation
