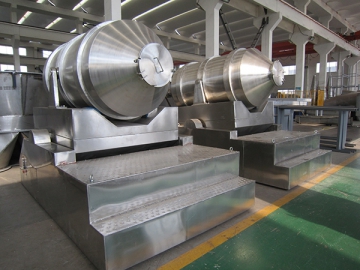

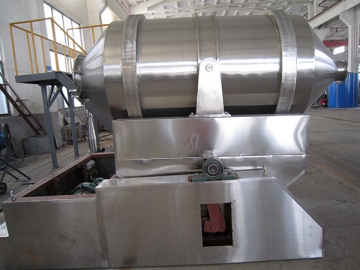

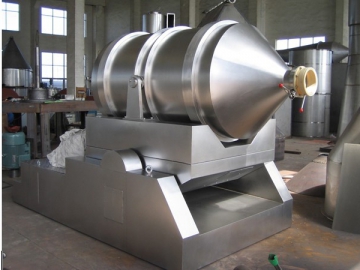

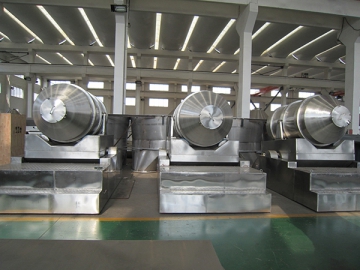

EYH Two-dimensional Movement Mixer
Overview
The EYH two-dimensional movement mixer is mainly comprised of rotating drum, oscillating axle and rack. Rotating drum is installed on the oscillating axle, supported by 4 rollers and axially positioned by 2 thrust rollers. Two of the 4 supporting rollers are driven by dynamic system to make the drum rotate. The oscillating axle of our two-dimensional movement mixer is driven by cranked oscillating bar which is secured to the rack of mixing machine. In addition, bearing units function as the support of the oscillating axle.
Features
1. The drum of our two-dimensional movement mixer is in tow motions. It rotates, and on the other hand, it oscillates with oscillating axle. Under such motions, the materials inside the drum are fully mixed within a short time.
2. This two dimensional mixer is applicable for all powdery and granular materials.
| Model | Drum capacity (L) | Charging capacity (L) | Max. charging capacity (kg/batch) | Oscillating/rotating times (r/min.) | Motor power (KW) | Overall dimension (mm)X×Y×Z×Z1 | Weight (kg) | Drum weight (kg) |
| 600 | 360 | 150 | 6.5/12.1 | 1.1/1.5 | 1200×2200×2050×1900 | 1150 | 140 | |
| 800 | 480 | 200 | 6.18/11.6 | 1.5/1.5 | 1400×2700×2230×1930 | 1600 | 200 | |
| 1000 | 600 | 250 | 5.28/10.87 | 1.5/1.5 | 1450×2850×2300×2000 | 1700 | 240 | |
| 1500 | 900 | 375 | 4.13/8.45 | 2.2/3 | 1720×3170×2450×2100 | 2000 | 320 | |
| 2000 | 1200 | 500 | 4.1/7.6 | 3/4 | 1820×3600×2650×2300 | 2600 | 430 | |
| 3000 | 1800 | 750 | 3.68/6.83 | 4/5.5 | 2070×3700×3150×2800 | 3500 | 620 | |
| 4000 | 2400 | 1000 | 3.46/6.8 | 5.5/7.5 | 2200×3900×3250×2900 | 4100 | 700 | |
| 6000 | 3600 | 1500 | 3.31/6.74 | 7.5/11 | 2500×4500×3350×3000 | 6100 | 1100 | |
| 8000 | 4800 | 2000 | 3.2/6.4 | 11/11 | 2700×4800×3650×3200 | 7900 | 1450 | |
| 10000 | 6000 | 2500 | 3.15/6.2 | 11/15 | 2900×5050×3750×3300 | 9500 | 1650 | |
| 12000 | 7200 | 3000 | 3.1/5.9 | 15/18.5 | 3150×5300×4000×3500 | 10000 | 1800 | |
| 15000 | 9000 | 3750 | 2.9/5.3 | 18.5/22 | 3350×5600×4350×3850 | 11000 | 2000 | |
| 20000 | 12000 | 5000 | 2.8/4.5 | 22/30 | 3600×6100×4850×4450 | 12000 | 2500 |
