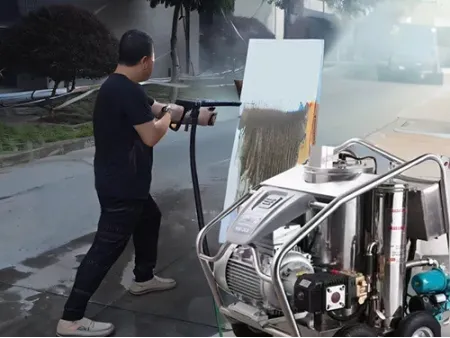

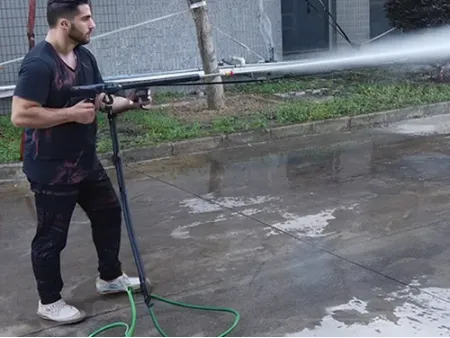

Hot Water High-Pressure Cleaner (Diesel Heating)
Request a Quote
Specifications
| Model | JNX-RSDS500 |
| Type | Hot water high-pressure cleaner with diesel engine |
| Rated pressure | 500bar (adjustable) |
| Working temperature | 60-85℃ (adjustable) |
| Temperature control accuracy | ±2℃ |
| Flow rate of hot water | 16L/min |
| Heating method | Diesel burner heating |
| Motor power | 15kW |
| Fuel consumption | 3.8L/h (full load) |
| Pressure fluctuation | ≤±3% |
| Noise level | ≤78 dB(A) |
| Cleaning efficiency | 25-35m²/h |
| Max. head | 80m |
| Input water requirements | Pressure 2-6bar, temperature ≤50℃ |
| Machine dimensions (L×W×H) | 1200×650×850mm |
| Machine weight | 280kg |
Key Features
Intelligent Control System - PLC & Touchscreen: Pre-sets 10 industry-specific cleaning modes for one-touch switching.
- Safety Protection: Auto-shutdown (overpressure/overheat/low water) and leakage protection, compliant with GB 5226.1 standard.
- Water Recycling Module: Optional wastewater recovery system (5μm filtration accuracy), ≥70% recovery rate.
- Low Noise Operation: ≤75dB (electric models), 20% below industry average.
- Anti-Corrosion: Stainless steel pump body, ceramic plunger, Teflon seals, resistant to seawater, acids, and alkalis.
- Anti-Vibration Frame: Full steel structure, shock-absorbing rubber pads, suitable for vehicle-mounted mobile use.
