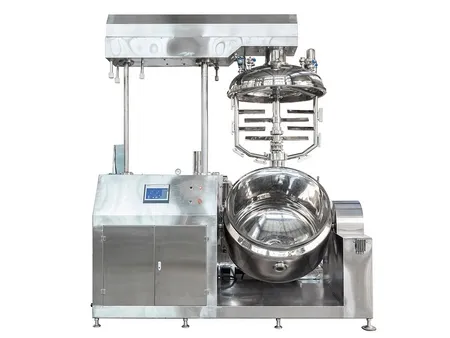

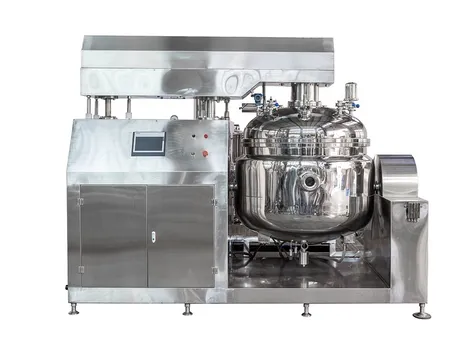

Vacuum Emulsification Mixer (Homogenizer)
Request a Quote
Pharmaceutical Machinery
OintmentCBZRJ-500
Vacuum homogenizer for homogenizing, emulsifying, mixing and dispersing ointments and cosmetics
- 500 L Working Volume
- -0.09 MPa Vacuum Degree

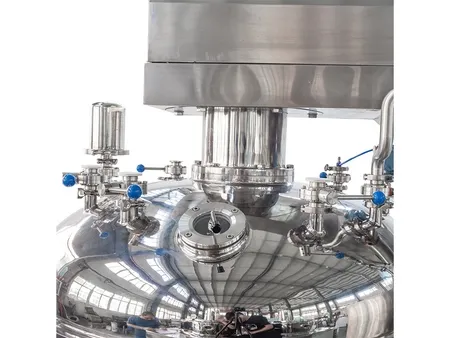

The vacuum emulsification mixer is a versatile machine that integrates homogenizing, emulsifying, mixing, dispersing, vacuuming, heating, and cooling functions into one unit. It is widely used in industries such as cosmetics, food, chemicals, and pharmaceuticals. The mixer is designed to handle cream, paste, or gel-like substances with viscosities up to 50,000cp, ensuring efficient homogenization, emulsification, and mixing processes under vacuum conditions.
Key features
- All parts in contact with product are made from high-quality stainless steel and non-toxic, harmless materials to ensure the highest sanitary standards for the final product.
- All pressure vessels are designed and manufactured with certification from qualified organizations, strictly adhering to national regulations for pressure vessel design and manufacturing.
Specifications
Emulsifying Vessel
- Total Volume: 620L
- Working Volume: 500L
- Vessel Inside Pressure: -0.1MPa
- Jacket Pressure: 0.1MPa
- Working Temperature: ≤110℃

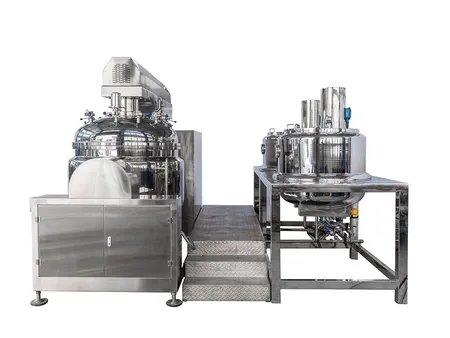

- Oil Tank Volume: 250L
- Water Tank Volume: 350L
- Jacket Pressure: 0.1MPa
- Working Temperature: ≤110℃

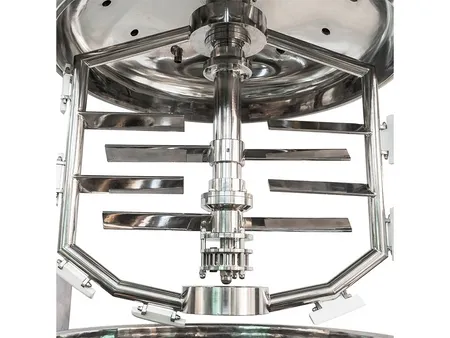

Agitator
- Type: turbine agitator
- Power: 1.5kW
- Rotation Speed: 0-3500rpm (variable frequency speed control)
- Power: 7.5kW
- Vacuum Degree: -0.09MPa
- Power: 4kW
- Type: liquid ring vacuum pump
