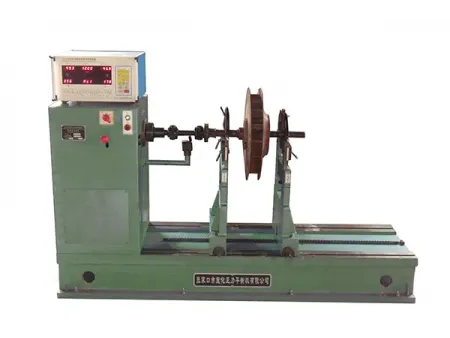

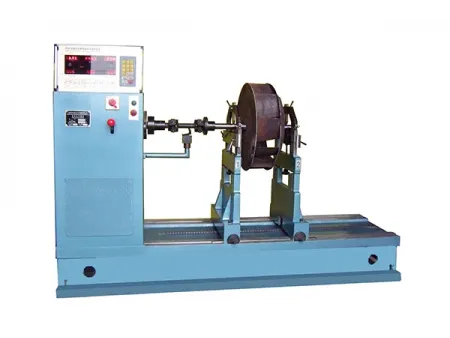

Fan Impeller Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/4-1-fan-impeller-balancing-machine.html

YFW-100/YFW-160

Hard-bearing balancing machine for dynamic balancing of fan impellers and blowers

The YFW-100 and YFW-160 are hard-bearing balancing machines widely used for the dynamic balancing of fan impellers and blowers. Their hard-bearing design ensures that the operating speed remains well below the system’s resonance speed, guaranteeing safe and stable operation. The fan impeller balancing machines are also suitable for balancing electric motor rotors, small fan rotors, crankshafts, pulleys, and flywheels.

Specifications

YFW-100 Fan Impeller Balancing Machine

Workpiece weight	3-100kg
Max. workpiece diameter	Ø100mm
Journal diameter of workpiece (standard roller carriage)	Ø10-90mm
Distance between two bearing supports	60-1000mm/1700mm (or based on negotiation)
Min. achievable residual unbalance (eMar)	1g.mm/kg
Unbalance reduction ratio (URR)	≥90%
Balancing speed (stepless speed control)	180-1200rpm (or based on negotiation)

YFW-160 Fan Impeller Balancing Machine

Workpiece weight	5-160kg
Short-time overload capacity	300kg
Max. workpiece diameter	Ø1100mm
Journal diameter of workpiece	Ø10-90mm
Distance between two bearing supports	60-1500mm (or based on negotiation)
Min. achievable residual unbalance (eMar)	1g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Can be equipped with the ZL-220 electrical measurement unit or the advanced ZL-2 dynamic balancing system, developed with independent intellectual property rights.
The ZL-2 system combines new USB data acquisition hardware with an industrial PC or integrated computer, delivering high stability and strong anti-interference capability.
The software, built with NI LabVIEW virtual instrument technology, is intuitive and user-friendly, adaptable to different levels of operation and varied application scenarios.
Expandable functions allow customization to meet specific testing needs.
