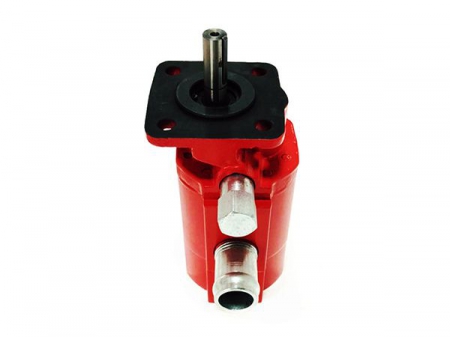

Hydraulic Gear Pump for Log Splitter

Our hydraulic gear pump, commonly referred to as a hi-lo pump, is a dual-stage pump featuring two working pressures. While it is primarily used in log splitters, its versatile design also makes it suitable for systems with similar working principles, such as riveting machines. This gear pump's dual-function capability allows for efficient operation in various applications, making it a valuable tool in equipment that requires different pressure levels for optimal performance.

Specifications

Model	Flow (gpm)	Pressure (Psi)		Displacement (Cu.in/r)		Speed (rpm)	D (mm)
Model	3600r/min	Low	High	Low	High	Speed (rpm)	Inlet port	Outlet port
CBT-6.3/2.1	8	400/900	3000	0.385	0.13	3600	1 in PIPE	1/2 in NPT
CBT-6.3/3.0	8.5	400/900	3000	0.385	0.183
CBT-6.3/3.6	9	400/900	3000	0.385	0.22
CBT-8.8/2.1	10	400/900	3000	0.537	0.13
CBT-8.8/3.0	10.5	400/900	3000	0.537	0.183
CBT-8.8/3.6	11	400/900	3000	0.537	0.22
CBT-8.8/4.2	11.5	400/900	3000	0.537	0.256
CBT-10.9/2.1	12	400/900	3000	0.665	0.13
CBT-10.9/3.0	12.5	400/900	3000	0.665	0.183
CBT-10.9/3.6	13	400/900	3000	0.665	0.22
CBT-10.9/4.2	13.5	400/900	3000	0.665	0.256
CBT-13.0/4.2	16	400/900	3000	0.793	0.265
CBT-15.2/7.6	22	400/900	3000	0.93	0.465		NPTF 1	NPTF3/
CBT-22.9/7.6	28	400/900	3000	1.395	0.465		G1	G3/4

Dimensions
