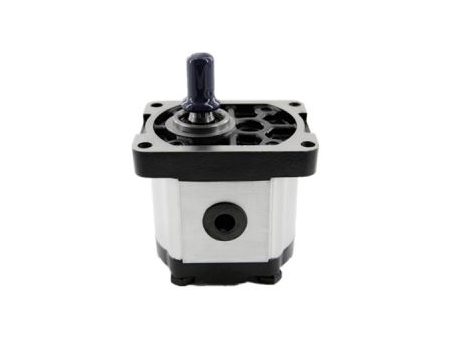

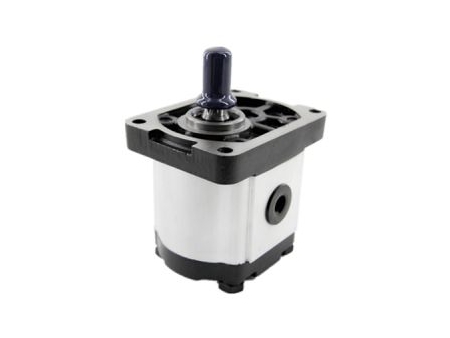

Hydraulic Gear Pump

The 2PF series gear pumps are widely utilized and are among our most popular series. These pumps are versatile enough to be used in hydraulic stations and within the sector of construction machinery. They are particularly effective in aerial work platforms and scissor lift platforms. Additionally, these pumps can serve as pilot pumps for main pumps. Their broad applicability and reliable performance make them an excellent choice for a range of hydraulic applications, from lifting equipment to complex machinery in engineering projects.

2PF Hydraulic Gear Pump

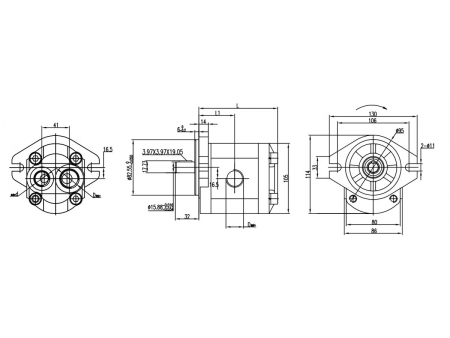

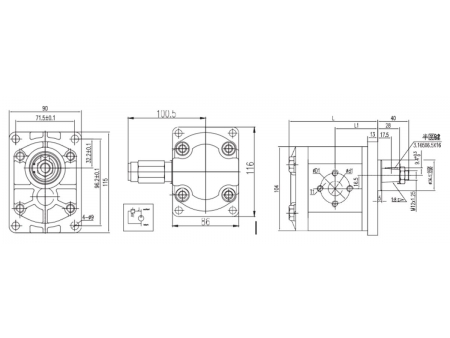

Dimensions

Specifications
Model Displacement (ml/r) Pressure (bar) Speed (r/min) L L1 Inlet port Outlet port
Nominal Max. Nominal Max. Min. (mm) (mm)
2PF4L09P02* 4 200 250 2000 3500 500 96 43.3 PT 1/2 PT 1/2
2PF6L09P02* 6 200 250 2000 3500 500 98 45
2PF8L09P02* 8 200 250 2000 3500 500 102 46.5
2PF10L09P02* 10 200 250 2000 3500 500 104 48
2PF12L10P02* 12 200 250 2000 3500 500 108 50 PT 3/4 PT 1/2
2PF14L10P02* 14 200 250 2000 3500 500 110 51
2PF16L10P02* 16 200 250 2000 3500 500 114 53
2PF18L10P02* 18 200 250 2000 3500 500 117 55
2PF20L10P02* 20 200 250 2000 3500 500 120 56
2PF23L10P02* 23 200 250 2000 3000 500 123 58
2PF25L10P02* 25 200 250 2000 3000 500 128 60
2PF28L10P02* 28 160 200 2000 3000 500 133 63
2PF30L10P02* 30 160 200 2000 3000 500 136 64

2ABPF Hydraulic Gear Pump

Dimensions

Specifications
Model Displacement (ml/r) Pressure (bar) Speed (r/min) L L1 Inlet port Outlet port
Nominal Max. Nominal Max. Min. (mm) (mm) ØD1 Ød1 T1 ØD2 Ød2 T2
2ABPF4F02Z03* 4 200 250 2000 3500 500 95.5 43.3 30 13 M6 3 13 M6
2ABPF6F02Z03* 6 200 250 2000 3500 500 99 45
2ABPF8F02Z03* 8 200 250 2000 3500 500 102 46.5
2ABPF10F06Z03* 10 200 250 2000 3500 500 105 48 40 20 M8
2ABPF12F06Z03* 12 200 250 2000 3500 500 108 49.5
2ABPF14F06Z03* 14 200 250 2000 3500 500 111 51
2ABPF16F06Z03* 16 200 250 2000 3500 500 114 52.5
2ABPF18F06Z03* 18 200 250 2000 3500 500 117.5 54.3
2ABPF20F06Z03* 20 200 250 2000 3500 500 121 56
2ABPF23F06Z03* 23 200 250 2000 3000 500 125.5 58.3
2ABPF25F06Z03* 25 200 250 2000 3000 500 128 59.5
2ABPF28F06Z03* 28 160 200 2000 3000 500 133 62
2ABPF30F06Z03* 30 160 200 2000 3000 500 136 63.5

2CP18 Hydraulic Gear Pump

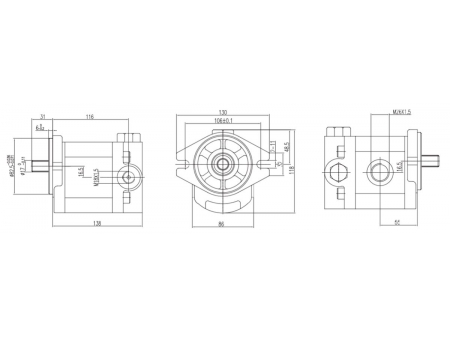

Dimensions

Specifications
Model Displacement (ml/r) Constant flow (L/min) Max. pressure (bar) Speed (r/min)
2CP1816/14L17J07SS 18 16 10 500-3200

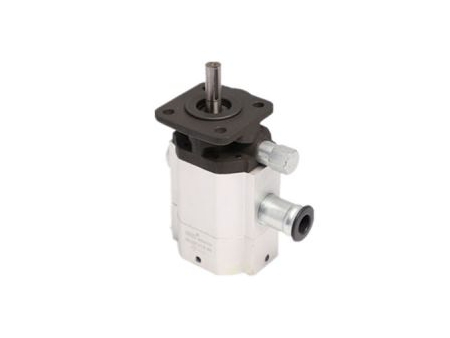

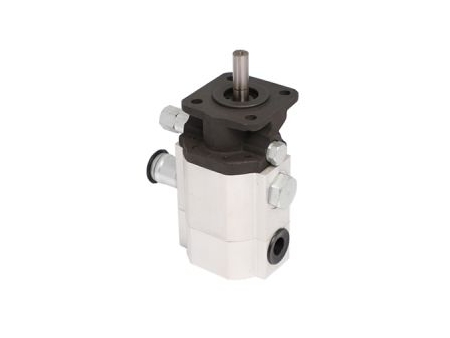

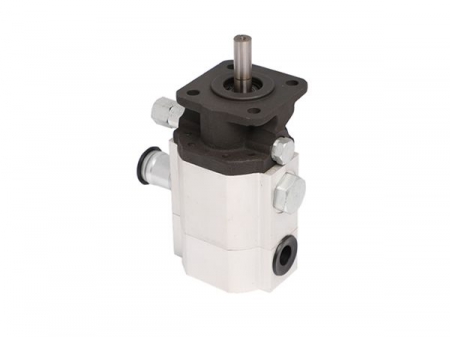

2CB-E HI-LO Hydraulic Gear Pump

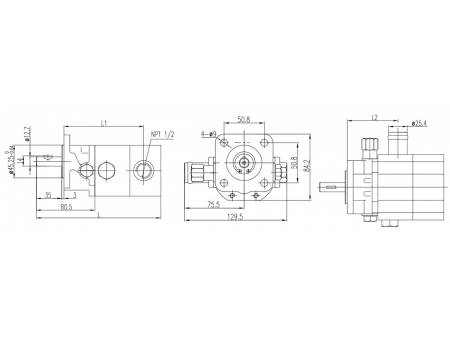

Dimensions

Specifications
Model Flow (gpm) Pressure (Psi) Displacement (Cu.in/r) Speed (rpm) D Dimensions (in)
Low High Low High Inlet port Outlet port L L1 L2
CBT-6.3/2.1 8 400/900 3000 0.385 0.13 3600 1 IN PIPE 1/2 NPT 6.07 3.74 2.41
CBT-6.3/3.0 8.5 400/900 3000 0.385 0.183 6.21 3.90 2.41
CBT-6.3/3.6 9 400/900 3000 0.385 0.22 6.28 3.90 2.74
CBT-8.8/2.1 10 400/900 3000 0.537 0.13 6.41 4.08 2.74
CBT-8.8/3.0 10.5 400/900 3000 0.537 0.183 6.54 4.08 2.74
CBT-8.8/3.6 11 400/900 3000 0.537 0.22 6.61 4.24 2.74
CBT-8.8/4.2 11.5 400/900 3000 0.537 0.256 6.70 4.24 2.74
CBT-10.9/2.1 12 400/900 3000 0.665 0.13 6.70 4.37 3.04
CBT-10.9/3.0 12.5 400/900 3000 0.665 0.183 6.90 4.53 3.04
CBT-10.9/3.6 13 400/900 3000 0.665 0.22 7.00 4.53 3.04
CBT-10.9/4.2 13.5 400/900 3000 0.665 0.256 7.09 4.53 3.04
CBT-13.0/4.2 16 400/900 3000 0.793 0.265 6.70 4.37 3.04

2/1DPF Hydraulic Gear Pump

Dimensions

Specifications
Displacement (ml/r) 4 6 8 10 12 14 16 18 20 23 25
L1(mm) 42.3 44 45.5 47 48.8 50 52 54 55 58 59
L3(mm) 50.5 54 57 60 63 66 69 72.5 76 80.5 83
Displacement (ml/r) 1.3 2 2.7 3.4 4.1 5.1 6.1 / / / /
L4(mm) 44 46 48 50 52 55 58 / / / /

2ADPF Hydraulic Gear Pump

Dimensions

Specifications
Displacement (ml/r) 4 6 8 10 12 14 16 18 20 23 28 30
L3/L4(mm) 50.5 54 57 60 63 66 69 72.5 76 80.5 88 91
L(mm) 96 98 102 104 108 110 114 117 120 123 133 136
L1(mm) 43.3 45 46.5 48 50 51 53 55 56 58 63 64

2ATPF Hydraulic Gear Pump

Dimensions

Specifications
Model Displacement (ml/r) Pressure (bar) Speed (r/min) L L1 Inlet port Outlet port
Nominal Max. Nominal Max. Min. (mm) (mm) ¢D1 ¢d1 T1 ¢D2 ¢d2 T2
2APF04F60* 4 200 250 2000 3500 500 87.9 42.2 40 15 M6 30 15 M6
2APF06F60* 6 200 250 2000 3500 500 91.1 43.8
2APF08F52* 8 200 250 2000 3500 500 94.3 45.4
2APF10F52* 10 200 250 2000 3500 500 97.5 47 40 20 M6
2APF12F52* 12 200 250 2000 3500 500 110.7 48.6
2APF14F52* 14 200 250 2000 3500 500 114 50.2
2APF16F52* 16 200 250 2000 3500 500 109.5 51.2
2APF18F52* 18 200 250 2000 3500 500 113 52.8
2APF20F52* 20 200 250 2000 3500 500 116.5 55.3
2APF23F52* 23 200 250 2000 3000 500 121.5 56.9
2APF25F52* 25 200 250 2000 3000 500 124.7 58.5

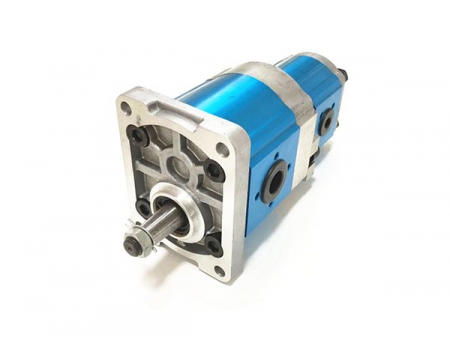

2YBDPF Hydraulic Gear Pump

Dimensions

Specifications
Model Displacement (ml/r) Pressure (bar) Speed (r/min)
    Front pump Rear pump
  Front pump Rear pump Nominal Max. Nominal Max. Nominal Max. Min.
2YBDPF20/10DF54J08* 20 10 200/250 250/300 200/250 250/300 2500 3000 800
