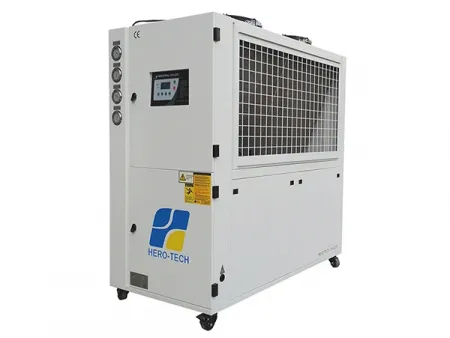

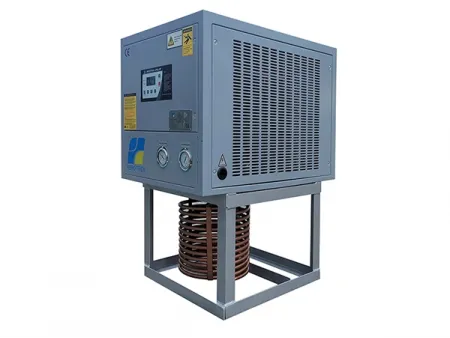

Oil Chiller
Industrial Chillers for Machine Tool Lubricant and Hydraulic Oil Cooling
Oil chillers provide specialized cooling for the lubricating and hydraulic systems essential to various machine tools. They are widely used in precision machinery such as CNC machine tools, coordinate boring machines, grinders, machining centers, and modular machines to cool spindle lubricant and hydraulic power unit oil.
By maintaining the oil temperature at or below ambient levels, our chillers effectively minimize thermal deformation in the machine tool structure. This results in improved machining accuracy, smoother operation, and more consistent performance—even during extended production cycles.
Our oil chillers deliver efficient and reliable cooling by leveraging the inherent advantages of oil as a heat transfer fluid. They are engineered to meet the rigorous demands of modern industrial equipment, ensuring enhanced process stability and prolonged machine service life.
- High-precision temperature control and stability The oil chiller keeps oil temperature within a set range, generally 10-30°C with a tolerance of ±1-2°C, effectively reducing thermal deformation in machine tools and improving machining accuracy. Equipped with a PID intelligent temperature control system, it allows the oil temperature to be adjusted in sync with the ambient temperature, preventing mechanical components from warping due to temperature differences.
- Energy-saving and environment friendly Uses eco-friendly refrigerants such as R407C, R410A, or R134a, ensuring zero pollutant emissions while maintaining efficient cooling performance.
- Durability and safety Key components, including stainless steel pumps and fin-type condensers, are made from corrosion-resistant materials for long service life. Multiple built-in protection functions such as phase-loss alarms, over-temperature protection, and leakage protection, ensure safe and reliable operation.
- Adaptability and flexibility Customizable to fit CNC machine tools, hydraulic presses, grinders, and other equipment. Supports parallel operation of multiple units for flexible load matching. The immersive oil cooling design prevents contamination from metal chips, making maintenance simple and straightforward.
- Precision machining
- CNC machine tools / grinders: Cools spindle lubricating oil to minimize thermal expansion errors and improve machining accuracy, for example, in coordinate boring machines and machining centers
- Electrical discharge machines (EDM): Maintains stable temperatures for electrodes and workpieces, helping extend tool life Hydraulic systems and power equipment
- Used in hydraulic presses, injection molding machines, and similar equipment to prevent high-temperature degradation of hydraulic oil, maintain stable viscosity, and avoid pressure fluctuations Mold and industrial forming
- Cools injection molds to shorten molding cycles and reduce surface defects in plastic products Specialized industrial applications
- Power equipment: Cools bearing lubrication oil in generator sets
- Chemical industry: Regulates reactor temperatures to mitigate overheating risks
| Model (HTO-***) | | | | | | | | | | ||
| Design type | Packaged type oil chiller | ||||||||||
| Nominal cooling capacity | kcal/h | 1616 | 3242 | 4859 | 6475 | 8677 | 13046 | 16193 | 21328 | 32379 | |
| kW | 1.88 | 3.77 | 5.65 | 7.53 | 10.09 | 15.17 | 18.83 | 24.8 | 30.34 | ||
| Input power | kW | 0.915 | 1.4 | 2.25 | 2.46 | 3.53 | 5.58 | 6.87 | 8.6 | 10.64 | |
| Power source | 1Ph 220V 50HZ | 3Ph 380V-415V 50Hz/60Hz | |||||||||
| Oil temperature range | 20℃ to 35℃ | ||||||||||
| Refrigerant | Type | R22 | |||||||||
| Control | Capillary tube | Thermostatic expansion value | |||||||||
| Compressor | Type | Hermetic rotary compressor | Hermetic scroll compressor | ||||||||
| Motor power | kW | 0.45 | 0.89 | 1.52 | 1.73 | 2.5 | 4.12 | 4.87 | 3.3×2 | 4.12×2 | |
| Condenser | Type | Aluminum finned coil condenser high-flow low-noise axial fan | |||||||||
| Cooling air flow | m³/h | 750 | 1000 | 1500 | 2000 | 3000 | 5000 | 6000 | 8000 | 10000 | |
| Fan power | kW | 0.095 | 0.14 | 0.18 | 0.18 | 0.14*2 | 0.18*2 | 0.18*2 | 0.25*2 | 0.45*2 | |
| Evaporator | Type | High-efficiency aluminum finned coil large volume low noise axial fan | |||||||||
| Chilled oil volume | m³/h | 1.08 | 1.8 | 2.3 | 3.6 | 5.4 | 9 | 10.4 | 14.4 | 18 | |
| Pipe connection | inch | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 1 | 1 | 1-1/2 | 1-1/2 | |
| Oil pump | Power | kW | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 |
| Head | m | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Safety devices |
| ||||||||||
| Dimensions | Length | mm | 550 | 600 | 650 | 650 | 1030 | 1030 | 1170 | 1350 | 1550 |
| Width | mm | 350 | 400 | 520 | 520 | 560 | 560 | 610 | 680 | 760 | |
| Height | mm | 755 | 885 | 1030 | 1030 | 1330 | 1330 | 1390 | 1520 | 1680 | |
| Net weight | kg | 45 | 52 | 65 | 85 | 132 | 165 | 183 | 275 | 355 | |
- Chilled water inlet/outlet temperature: 12°C / 7°C
- Cooling air inlet/outlet temperature: 30°C / 38°C
Note: Units using R407C refrigerant have approximately 5% lower cooling capacity compared to R22 models.
We reserve the right to modify the specifications without further notice.
We customize and deliver industrial chillers and process cooling equipment to match your specifications
