Cast-In Anchor Channel

Request a Quote

View All: http://mkt-en.com/4-3-cast-in-anchor-channel.html

Structural Strengthening Systems

Anchorage system for providing flexible fixing points for concrete structures

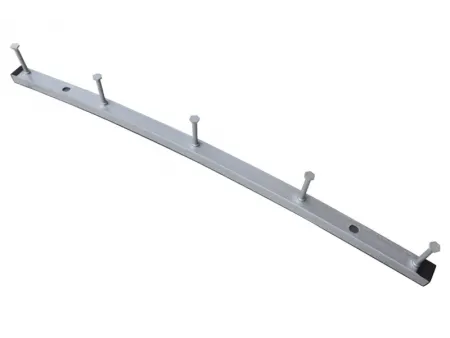

Cast-in anchor channel is a pre-installed anchoring system embedded directly into concrete to provide secure and adjustable fixing points, and transfer high loads into reinforced and unreinforced concrete components. Commonly used in facade systems, utility tunnels, subway segment panels, secondary linings of high-speed rail tunnels, urban transit systems, and U-beam structures, it offers reliable performance in structural reinforcement and modular connection applications.

Technical Data

Model	Length (mm)	Width (mm)	Channel section height (mm)	Anchor spacing (mm)	End spacing (mm)
30/20	7200	30	20	50-250	≥25
38/23	7200	38	23	50-250	≥25
40/22	7200	40	22	100-250	≥25
40/26	7200	40	26	100-250	≥25
50/25	7200	50	25	100-250	≥25
50/30	7200	50	30	100-250	≥25
52/34	7200	52	34	100-250	≥25
53/34	7200	53	34	100-250	≥25
72/48	7200	72	48	100-250	≥25
The actual spacing of the anchor bolts should be determined based on the project-specific structural calculations.

Applications

Mounting of accessories and auxiliary components

Installation of mechanical systems, including heating, ventilation, air conditioning (HVAC), and plumbing pipelines

Lateral fixation of structural columns, such as curtain wall subframes

Flexible mounting requirements in power plants, factories, and exhibition halls

Installation of elevator guide rails and elevator side door systems

Fixing of medium-duty and smaller equipment

Features

T-bolts can slide along the channel for flexible positioning of anchorage points
Available with multiple corrosion-resistant finishes, including multi-metal diffusion treatment, hot-dip galvanizing, electroplating, and powder coating
Pre-fabricated using hot-rolled profiles, offering excellent structural performance for both static and dynamic loads, while significantly reducing on-site installation time
Equipped with environmentally friendly sealing strips and end caps to prevent grout leakage during concrete embedding
