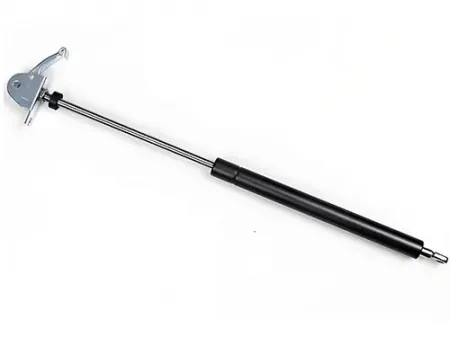

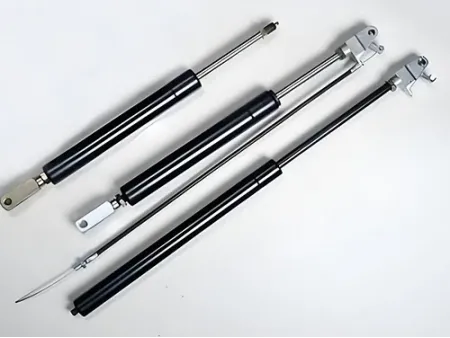

Lockable Gas Springs
Request a Quote
Gas struts with adjustable locking function for precise positioning, height adjustment and motion control in automotive, medical, and industrial applications
Lockable gas springs are specially designed gas springs that can be locked at any position along their stroke, allowing precise control of motion and positioning. These gas springs are widely applied in machinery, automotive, aerospace, medical, and architectural fields. They provide functions such as vibration damping, support, cushioning, and height adjustment, making them suitable for applications including automotive suspension systems, mattresses, office chairs, lifting platforms, and aircraft seats.
Structure
Materials and Surface Treatments
- Piston rod: Alloy steel / Stainless steel / Aluminum alloy
- Surface treatments: Chrome plating / Nitriding (QPQ)
- Cylinder and end fittings: Stainless steel / Alloy steel / Aluminum alloy
- Surface treatments: Alloy electroplating / Water-based paint / Oil-based paint
- Piston: Powder metallurgy / Aluminum alloy / Alloy steel
Technical Specifications
| d(mm) | D(mm) | S(mm) | L(mm) | Force F1(N) |
| 10 | 18 | 20-200 | 160-520 | 100-500 |
| 10 | 22 | 20-200 | 180-540 | 100-800 |
| 10 | 26 | 27-300 | 238-800 | 150-1000 |
| 10 | 28 | 100-400 | 400-1000 | 200-1000 |
Optional End Fittings
XW-1078 Pull-rod gas spring release head
XW-1075 Dual-paddle gas spring release head
XW-1076 Single-paddle gas spring release head
XW-1077 Lever gas spring release head
XW-1071 White push-button gas spring release head (short)
XW-1072 White push-button gas spring release head (long)
XW-1073 Red push-button gas spring release head (short)
XW-1074 Red push-button gas spring release head (long)
Selection Reference
Adjustable Angle Type (Elastic Lock / Free Stop) - Features: Enables positioning at any desired angle with smooth and comfortable adjustment.
- Applications: Suitable for equipment requiring angle adjustment and flexible positioning such as recliners, beds, medical devices, and display mounts.
- Features: Provides strong locking capability and secure fixation at specific positions.
- Applications: Ideal for equipment requiring high load capacity and safety such as automotive seats, office chairs, and industrial support mechanisms.
Applications
Adjustable office desks
Adjustable medical beds
Adjustable seating systems
