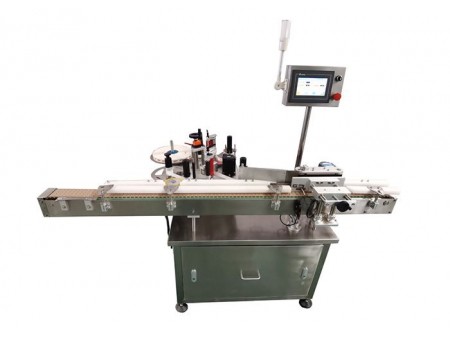

Top and Bottom Labeler Machine
Request a Quote
Application:
The top and bottom labeler machine is used to automatically label packaging for short bottles in square, round, and flat shapes. This equipment is widely used for food labeling, medical and pharmaceutical labeling, cosmetic labeling and other labeling applications.
| Top and bottom labeling capacity | 40-100/min(depending on product and size of label ) |
| Top labeling capacity | 60-200/min(depending on product and size of label) |
| Speed of conveyor belt | 5~40m/min |
| Speed of interlayer | 5~40m/min |
| Width of bottles on conveyor belt | F20~100mm |
| Labeling speed | 3~40m/min |
| Labeling errors (exclude package and label error) | ±1mm |
| Max diameter of top labeling | 95 mm |
| Max diameter of bottom labeling | 40 mm |
| Min length of label | 10mm |
| Power | 2000W |
| Electrical requirements | L/N/PE 220V 50Hz |
| Working temperature | 0-50℃ |
| Working relative humidity | 15-90% |
