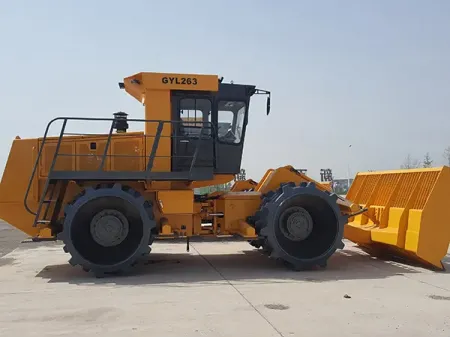

GYL263 Landfill Compactor
Landfill operations require more than just power, they demand control, safety, and low maintenance. This landfill compactor meets those needs with a smart combination of performance and protection. The cabin offers a panoramic view and includes rollover protection, dual braking on both axles, and enhanced night visibility through infrared rearview monitoring and audible alarms. Maintenance tasks are simplified thanks to the tilting cab, side inspection corridors, and a centralized lubrication system. A built-in spray system helps control dust and odors during operation. With ISO-certified reliability, it helps extend the lifespan of landfill sites while keeping long-term operational costs in check.
- Operating weight 26000 kg
- Compaction width 3430 mm
- Diesel engine power 192 kW
The compactor’s wheels are equipped with wear-resistant teeth and dual scrapers and wire cutters per drum. This configuration prevents wire entanglement and ensures the drums remain clean during operation. A built-in spray system helps control odors and deters insects, supporting hygiene at landfill sites.
Maintenance access is easier thanks to its rotatable cab and three viewing windows on each side of the engine hood. Steps and protective ladders on both sides offer safe and convenient access to key components.
For safer and more confident maneuvering, the machine integrates an infrared rearview monitoring system and an audible alarm, enhancing visibility and operator awareness when reversing.
- ModelGYL263
- Operating weight26000kg
- Compaction width3430mm
- Travel speed4.41/7.1/10.87km/h
- Gradeability100%
- Dozer blade height1880×3800mm
- Wheel base3500mm
- Ground clearance490mm
- Wheel width (front/rear)1195/970mm
- Wheel diameter (front/rear)1620/1620mm
- Teeth number per wheel (front/rear)50/40
- Diesel engine modelSC9D
- Diesel engine power192kW
- Overall dimensions (to blade)8150×3800×3810mm
- Overall dimensions (to outside of front tires)8150×3400×3810mm
