Corrugated Profile Metal Wall Panel

Request a Quote

Website: http://bltbuilding.com/5-8-exposed-fastener-metal-wall-panels.html

YX32-130-780

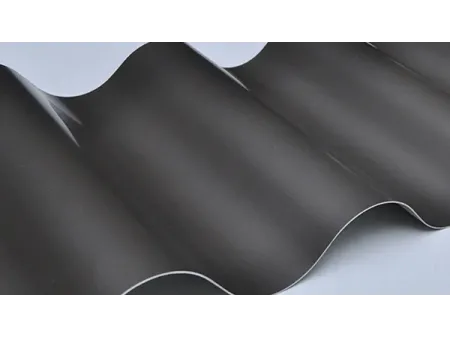

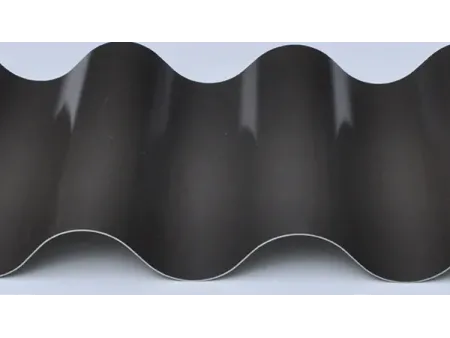

32mm depth×780mm width corrugated profile cladding sheets for facades or exterior walls of various types of buildings

Effective cover width: 780mm
Overall width of sheet: 1000mm
Thickness: 0.4mm-1.0mm
Length: Customizable
Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet

These corrugated cladding sheets stand out for their wide wave profile, which gives façades a smooth and dynamic look. They can be installed in both horizontal and vertical layouts, giving more flexibility to adapt the façade to different designs. Besides they good appearance, they perform well under wind and seismic stress, which is suitable for large industrial and commercial buildings.

Applications

Widely used for factories, office buildings, shopping centers, hotels, and exhibition facilities, especially in projects that require durability and a distinctive architectural style.

Highlights & Applications

Commonly used on office buildings, commercial façades, and industrial workshop exteriors.
Cladding panels are fixed to a galvanized steel framework (≥1.5 mm thick) with a maximum spacing of 1200 mm, providing reliable support.
Compatible with both concrete walls and steel structures as the main substrate.
Installation is usually done horizontally, using exposed fasteners from bottom to top for proper alignment.
Two corrugation styles are available, large-wave and small-wave profiles, to match different designs, from bold and solid to smooth and flowing.

Components

Façade cladding
Joint cover strip
Vertical subframe (stud/keel)
Insulation layer
Liner panel

Specifications

Model	YX32-130-780
Effective cover width	780mm
Overall width of sheet	1000mm
Thickness	0.4mm-1.0mm
Length	Customizable
Type of cladding	Exposed fastener wall panel
Installation	Horizontal installation,vertical installation
Material	Al-Mg-Mn alloy sheet,pre-painted steel sheet,stainless steel sheet,titanium zinc sheet
Metal sheet suppliers	Baosteel,BlueScope,Yieh Phui,Wah Tung,Alliance Steel,etc.
Color	Standard color custom color
Surface coating	PE/HDP/PVDF,etc.
Applications	Architectural cladding for walls and roofs
Lifespan	At least 50 years
Mounting accessories included	A full range of shear studs,self-tapping screws,clamps,etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

The wide corrugated shape adds depth and a modern character to exterior walls.
Flexible installation options allow both vertical and horizontal layouts with a wide color range to match different designs.
Made with PVDF-coated aluminum-magnesium-manganese alloy, to ensure long-term weather resistance and minimal maintenance.
Strong yet lightweight, corrugated cladding sheets combine a good appearance with reliable performance for demanding projects.
