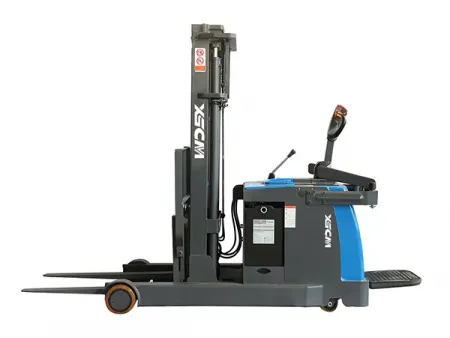

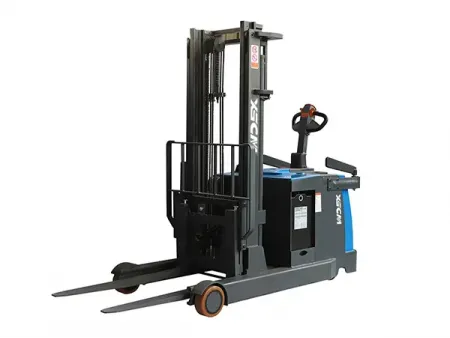

STR10E/15E/20E Stand-On Electric Reach Truck
Request a Quote
Reach truck with maximum load capacity options of 1000kg, 1500kg and 2000kg
- Max. load capacity
1000-2000kg - Load center
500mm - Max. lifting height
1600mm - Reach length
570mm
Specifications
| Model | | | |
| Max. load capacity | 1000kg | 1500kg | 2000kg |
| Load center | 500mm | 500mm | 500mm |
| Max. lifting height | 1600mm | 1600mm | 1600mm |
| Reach length | 570mm | 570mm | 570mm |
| Tilting angle (up/down) | 3°/5° | 3°/5° | 3°/5° |
| Travel speed (without load) | 5.2km/h | 5.2km/h | 5.2km/h |
| Travel speed (with load) | 5.2km/h | 5.2km/h | 5.2km/h |
| Lifting speed (without load) | 115mm/s | 115mm/s | 115mm/s |
| Lifting speed (with load) | 92mm/s | 92mm/s | 92mm/s |
| Lowering speed (without load) | 173mm/s | 173mm/s | 173mm/s |
| Lowering speed (with load) | 530mm/s | 530mm/s | 530mm/s |
| Gradeability (without load) | 5% | 5% | 5% |
| Gradeability (with load) | 5% | 5% | 5% |
| Service weight (with battery) | 2102kg | 2102kg | 2262kg |
Dimensions
| Overall length (excluding fork length & mast reach length) | 1890mm | 1890mm | 1890mm |
| Overall length (including fork length excluding mast reach length) | 2307mm | 2307mm | 2307mm |
| Overall length (including fork length excluding mast reach length) | 2420mm | 2420mm | 2420mm |
| Overall length (including mast reach length) | 2950mm | 2950mm | 2950mm |
| Overall width of frame | 1034mm | 1034mm | 1034mm |
| Overall height when mast lowered to lowest | 2200mm | 2200mm | 2200mm |
| Overall height when mast lifted to highest | 2636mm | 2636mm | 2641mm |
| Wheelbase | 1510mm | 1510mm | 1510mm |
| Fork size | 1070×35×100mm | 1070×35×100mm | 1070×40×100mm |
| Adjustable range of fork outside width | 210-700mm | 210-700mm | 210-700mm |
| Fork height when fork lowered to lowest | 60mm | 60mm | 65mm |
| Min. ground clearance | 55mm | 55mm | 55mm |
| Theoretical width of minimum aisle for right-angle stacking (1200×1000) | 2640mm | 2640mm | 2640mm |
| Min. turning radius (without platform) | 1771mm | 1771mm | 1771mm |
| Min. turning radius (with platform) | 2193mm | 2193mm | 2193mm |
Tire
| Overhead guard height | 2215mm | 2215mm | 2215mm |
| Front wheel | 210×85mm | 210×85mm | 210×85mm |
| Drive wheel | 230×75mm | 230×75mm | 230×75mm |
| Caster wheel | 130×55mm | 130×55mm | 130×55mm |
| Wheel material | Polyurethane | Polyurethane | Polyurethane |
Electrical Components
| Drive motor type | AC series motor | AC series motor | AC series motor |
| Drive motor power | 1.5kW | 1.5kW | 1.5kW |
| Hoist motor type | DC series motor | DC series motor | DC series motor |
| Hoist motor power | 3kW | 3kW | 3kW |
Battery
| Voltage | 24V | 24V | 24V |
| Capacity | 210Ah | 210Ah | 240Ah |
| Weight | 195kg | 195kg | 222kg |
Mast
| Mast Type | Max. fork height | Mast lowered height | Mast extended height | Free lift height |
| Simplex or duplex (2-stage mast) | 2000mm | 1475mm | 3036mm | |
| 2500mm | 1725mm | 3536mm | ||
| 3000mm | 1925mm | 4036mm | ||
| 3500mm | 2225mm | 4536mm | ||
| 4000mm | 2475mm | 5036mm | ||
| Triplex mast (3-stage full free lift) | 4000mm | 1848mm | 5013mm | 1361/1366mm |
| 4500mm | 2015mm | 5513mm | 1527/1532mm | |
| 5000mm | 2238mm | 6033mm | 1701/1706mm | |
| 5500mm | 2398mm | 6511mm | 1859/1864mm | |
| 6000mm | 2577mm | 7035mm | 2035/2040mm |
