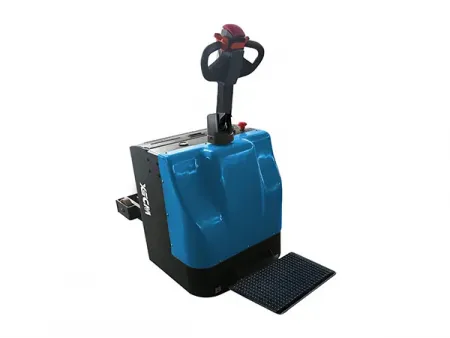

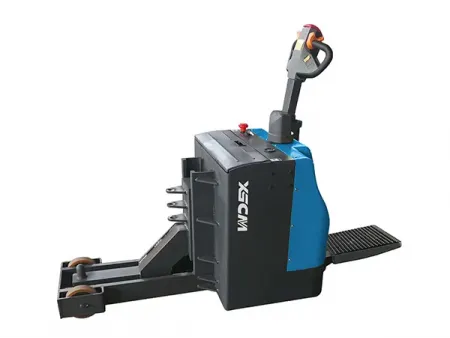

STB30B Stand-On Electric Tow Tractor (Electric Tugger)
Request a Quote
Electric tugger with towing capacity of up to 3000kg
- Drive type
rear-wheel electric drive - Towing speed (loaded/unloaded)
6-12 km/h - Minimum turning radius
1.5-2.2 m - Driving mode
sit-down type with steering wheel - Operating time per charge
6-8 hours
Applications: factories, airports, and warehouses requiring long-distance or multi-trailer towing
Specifications
| Performance | Max. tow capacity | 3000kg |
| Max. lifting height, H1 | 280mm | |
| Service weight (with battery) | 670kg | |
| Dimensions | Overall length of frame, L | 1467mm |
| Overall width of frame, B | 735mm | |
| Handle height, H | 1410mm | |
| Min. ground clearance, S | 30mm | |
| Wheelbase, Y | 1145mm | |
| Min. turning radius (without platform) | 1370mm | |
| Min. turning radius (with platform) | 1880mm | |
| Tire | Front wheel | 180×55mm |
| Drive wheel | 230×75mm | |
| Caster wheel | 130×55mm | |
| Wheel material | Polyurethane | |
| Electrical Components | Drive motor type | AC series motor |
| Rated output | 1.5kW | |
| Battery | Voltage | 24V |
| Capacity | 210Ah | |
| Weight | 195kg |
Features
- The reinforced towing arms are built to handle heavier loads with solid traction and lasting strength.
- A multifunctional handle makes steering and speed control smooth and intuitive during operation.
- Rear-wheel drive delivers strong pulling power, especially when towing multiple trailers or dense materials.
- The design includes a stable chassis, emergency stop button, and anti-collision protection to keep operation safe and steady.
