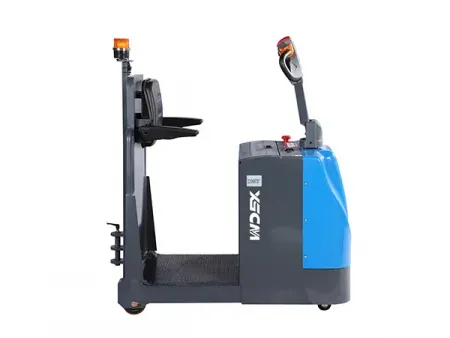

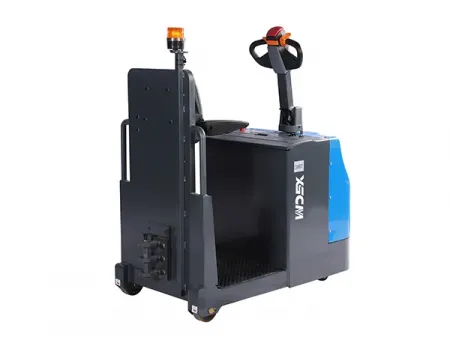

STB20/30/40/50 Stand-On Electric Tow Tractor (Electric Tugger)
Request a Quote
Electric tugger with maximum towing capacity options of 2000kg, 3000kg, 4000kg and 5000kg
- Drive Type
Electric front-wheel drive - Speed Control
Tiller handle, 5-8 km/h - Operation Mode
Stand-on type
Specifications
| Model | | | | |
| Max. tow capacity | 2000kg | 3000kg | 4000kg | 5000kg |
| Service weight (with battery) | 630kg | 630kg | 1330kg | 1330kg |
| Dimensions | ||||
| Overall length of frame, L | 1365mm | 1365mm | 1494mm | 1494mm |
| Overall width of frame, B | 735mm | 735mm | 884mm | 884mm |
| Handle height, H2 | 1485mm | 1485mm | 1573mm | 1573mm |
| Min. ground clearance, S | 37mm | 37mm | 37mm | 37mm |
| Pull bolt height, H3 | 220-430mm | 220-430mm | 220-430mm | 220-430mm |
| Overall height of frame, H | 1469mm | 1469mm | 1596mm | 1596mm |
| Min. turning radius, WA | 1305mm | 1305mm | 1485mm | 1485mm |
| Tire | ||||
| Front wheel size | 130×75mm | 130×75mm | 210×85mm | 210×85mm |
| Drive wheel size | 230×75mm | 230×75mm | 260×105mm | 260×105mm |
| Caster wheel size | 100×50mm | 100×50mm | 130×55mm | 130×55mm |
| Drive and front wheel material | Polyurethane | |||
| Caster wheel material | Rubber | Polyurethane | ||
| Electrical components | ||||
| Drive motor type | AC series motor | |||
| Rated output | 1.5kW | 3kW | 3kW | 3kW |
| Voltage | 24V | 24V | 24V | 24V |
| Battery | ||||
| Capacity | 210Ah | 240Ah | 240Ah | 240Ah |
| Weight | 195kg | 222kg | 222kg | 222kg |
Features
- Stand-on design with a control handle for smooth steering and precise speed adjustment
- Compact body and small turning radius which is suitable for narrow aisles and confined spaces
- Practical for frequent get-on-and-off operations such as order picking, delivery, and short-distance transport
- Designed for light-duty towing tasks, easy to control and dependable in daily use
