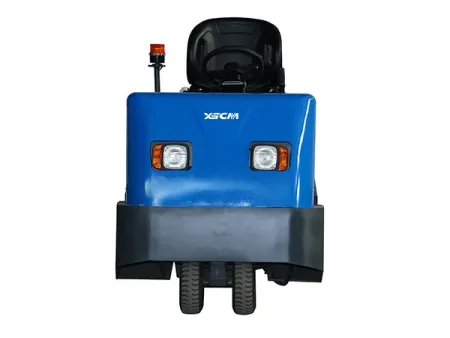

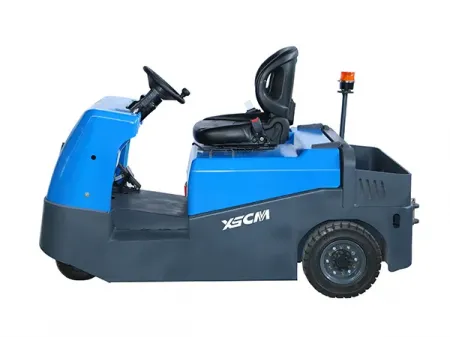

STB30A/40A/50A/60A Seated Electric Tow Tractor (Electric Tugger)
Request a Quote
Electric tugger with maximum towing capacity options of 3000kg, 4000kg, 5000kg and 6000kg
- Drive type
rear-wheel electric drive - Towing speed (loaded/unloaded)
6-12 km/h - Minimum turning radius
1.5-2.2 m - Operation mode
sit-down type with steering wheel - Operating time per charge
6-8 hours
Applications: factories, airports, and warehouses requiring long-distance or multi-trailer towing
Specifications
| Model | | |
| Drive type | Electric | Electric |
| Operating mode | Seated | Seated |
| Performance | ||
| Weight with battery | 812kg | 1240kg |
| Max. tow capacity | 3000/4000kg | 5000/6000kg |
| Overall height | 1209mm | 1209mm |
| Seat height | 862mm | 862mm |
| Coupling height (hook center to ground) | 260-480mm | 260-480mm |
| Front suspension | 872mm | 872mm |
| Overall length | 1957mm | 1957mm |
| Overall width | 960mm | 960mm |
| Min. ground clearance | 110mm | 110mm |
| Tire | ||
| Wheel type | Tire | Tire |
| Drive wheel size | 410×112mm | 410×112mm |
| Front wheel size | 286×100mm | 286×100mm |
| Electrical Components | ||
| Drive motor type | AC | |
| Rated output | 3kW | 4kW |
| Steering type | Mechanical steering | |
| Stopping brake type | Drum brake | Drum brake |
| Battery | ||
| Voltage | 24V | 48V |
| Capacity | 280Ah | 325Ah |
| Weight | 260kg | 600kg |
Features
- The seated design gives the operator a clear view and a more relaxed posture, which helps during long towing shifts.
- With rear-wheel drive, the tractor moves steadily even when handling several trailers or heavy materials.
- Steering feels natural through the wheel, making direction changes and precise turns effortless.
- The sturdy chassis keeps the vehicle well-balanced and minimizes vibration when working with heavy loads.
