Rock Drilling Tools
Anchoring casing bits with hard metal inserts and long round threads, designed for fast penetration, high torque resistance and secure casing advancement in foundation pits, ground reinforcement, slope stabilization and tunnel pipe roofing projects.
Foundation pits, ground reinforcement, slope stabilization, tunnel pipe roofing, and other anchoring support works.
| L, mm | D, mm | S, mm | Thread (T), mm | Weight, kg | Product name |
| 2000 | 54 | 8.5 | 42 | 19 | 54 internal drilling rod |
| 2000 | 76 | 10 | 56 | 32 | 76 internal drilling rod |
| 1500 | 89 | 15 | 78 | 41 | 89 internal drilling rod |
| 1500 | 102 | 15 | 90 | 48 | 102 internal drilling rod |
| 1. The standard thread configuration is left-hand thread. 2. The standard connection between the drilling rod and adapter is threaded connection. Friction-welded connections are available upon request. | |||||

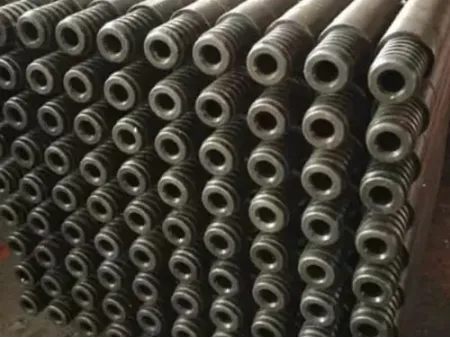

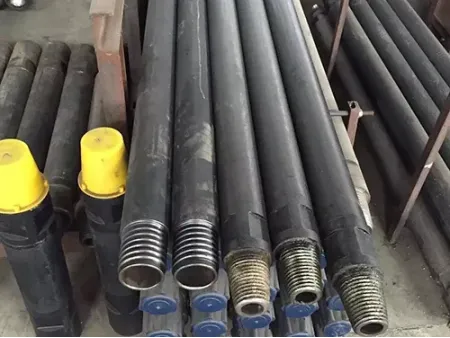

The anchoring drilling rods are equipped with dedicated extended threads, which effectively prevent separation from the rod body during rotation.
The threads adopt a round-thread profile, offering improved geometric conformity, enhanced load distribution, and higher resistance to loosening under continuous drilling conditions.
The anchoring drilling tools are manufactured from thickened high-strength steel with reinforced thread designs, ensuring reliable self-drilling performance, high tensile resistance, and safe pull-out operations in steep slopes, tuff formations, and backfilled ground. These systems are widely adopted in deep excavation and slope stabilization projects.
The anchoring drilling tools are fully compatible with commonly used self-drilling anchor systems, providing secure connections, fast penetration rates, and reduced risk of thread disengagement. They are well suited for projects with high daily output requirements and tight construction schedules.
