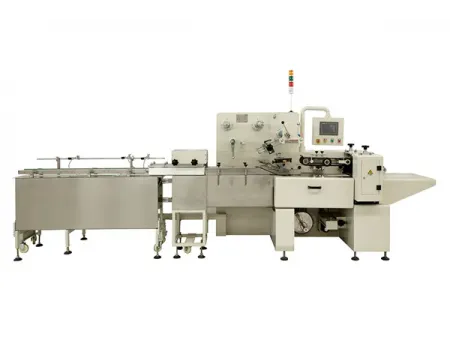

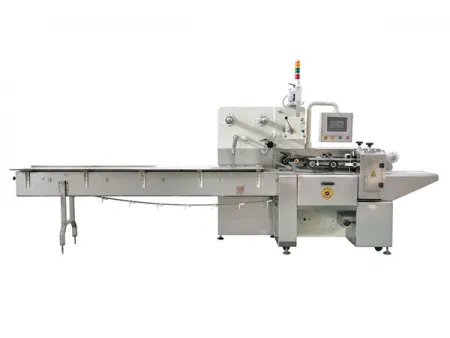

Horizontal Packaging Machine, SF-E
Request a Quote
SF-E
Automatic pillow pack machine for packaging small-sized food products, medicines and industrial parts with or without trays
Applications
This multipack flow wrapping machine is suitable for trayless multipack packaging of:
- Biscuits
- Bread
- Pastry
- Instant noodles
- Pharmaceutical products
- Industrial parts
Features
- Supports pack counting, pause and accumulation, as well as automatic tracking, alarm prompts, and fault recording with troubleshooting prompts functions
- Features distributed servo drive control systems, with automatic search functions to correct the cutting point
- Automatic bag length measurement, restart in case of failure, and dispensation functions
- End-sealing heating circuit design allows for easy assembly and disassembly, without exposing the wiring circuit
- Consists of an infeed conveyor and main unit, enabling stepless speed regulation within the specified range
- Horizontal flow wrapping machine performance complies with safety and environmental protection standards, and exposed transmission parts are equipped with removable safety guards
- Utilizes a rotary transverse sealing knife structure to ensure smooth sealing and continuous operation, with high packaging speed, high efficiency, and stable, reliable operation. Making it suitable for various high-speed automatic packaging applications.
Specifications
| Model | ||||||
| Bag material | Laminated films suitable for hot-sealing: OPP/PP, PT/PE, AL/PE, etc. | |||||
| Max. film width (mm) | 450 | 450 | 450 | 590 | 590 | 680 |
| Bag size (mm) L*W*H | L: 90-400 W: 10-150 H: 5-25; 25-40 | L: 90-400 W: 10-150 H: 10-30; 30-55 | L: 120-450 W: 10-150 H: 30-50; 40-75 | L: 90-400 W: 30-200 H: 10-30; 30-55 | L: 120-450 W: 30-200 H: 30-50; 40-75 | L: 140-480 W: 30-220 H: 40-70; 60-100 |
| Capacity (bags/min) | 30-200 | 30-180 | 30-150 | 30-150 | 30-120 | 30-100 |
| Overall dimensions (mm) | 5000*900*1750 | 5000*1040*1750 | ||||
| Total weight (kg) | 1000 | 1200 | ||||
| Power supply | Single-phase 220 V, 50 Hz; total power < 6 kW | |||||
