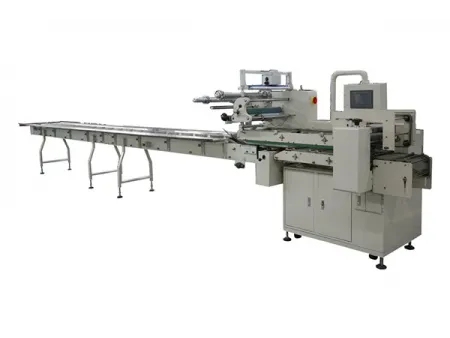

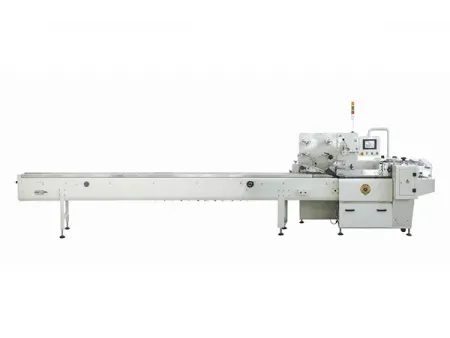

Horizontal Packaging Machine, SF-J (Multipack Packaging)
Request a Quote
SF-J
Servo-driven flow packing machine for multi-row or multi-piece packaging of buns, cakes, biscuits and other food products
Applications
SF-J horizontal flow wrapper is suitable for multipack packaging products and multi-row long-shaped products after individual wrapping, such as:
- Quick-frozen mantous, flower roll steamed buns, and steamed stuffed buns
- Rice cracker
- Multipack biscuits
Features
- Equipped with servo motors for more precise control, enabling stepless speed regulation and dynamic adjustment during operation
- Large-size touch screen panel for easy operation, with product configuration storage and recall, so product changeover can be completed by simply selecting the corresponding saved configuration
- Photoelectric detection with bidirectional tracking effectively eliminates packaging errors and reduces material waste
- New longitudinal hot sealing system, enabling sealing at low temperatures and preventing film scorching or damage during machine stoppage, significantly reducing the reject rate
- Adjustable bag former, with configurable long and short pitch settings for convenient product changeover
Specifications
| Model | ||||
| Bag material | Laminated films suitable for hot-sealing: Paper/PE, OPP/PE, PT/PE, AL/PE, etc. | |||
| Max. film width (mm) | 590 | 590 | 590 | 680 |
| Bag size (mm) L*W*H | L: 100-400 W: 30-200 H: 10-60 | L: 120-450 W: 30-200 H: 30-75 | L: 140-480 W: 30-200 H: 40-100 | L: 140-480 W: 30-220 H: 40-100 |
| Capacity (bags/min) | 20-60 | 20-60 | 20-60 | 20-60 |
| Overall dimensions (mm) | 5000×1105×1750 | 5000×1200×1750 | ||
| Weight (kg) | 1200 | 1200 | 1200 | 1300 |
| Motor power (kW) | Main motor: 1.5 kW (1 unit); film motor: 0.75 kW | |||
| Power supply | Single-phase 220 V, 50 Hz | |||
| Total power (kW) | 5 | |||
