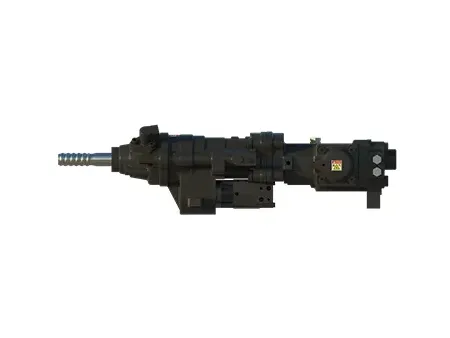

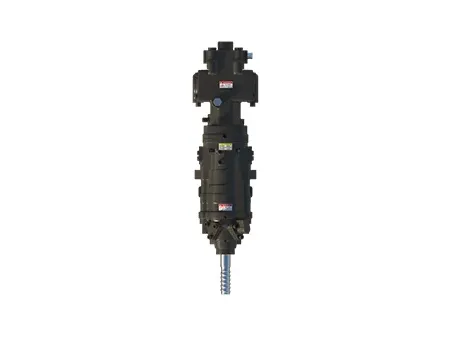

YHD210
Excavator Attachments- Impact Output Power: 18kW
- Drilling Diameter: Ø43-115mm
The YHD210 hydraulic drifter integrates a high-strength spline sleeve designed for superior durability. It offers extensive compatibility with drills, including T45, T38, R38, and R32. The integrated flushing sleeve is engineered for dual-medium versatility, utilizing either high-pressure water or compressed air as the flushing agent. The unit is optimized to maintain high penetration rates across a broad borehole range of Ø43mm to Ø115mm.
→
Product Parameters
| Max. Impact Output Power | 18kW |
| Impact Frequency | 48-62Hz |
| Max. Impact Pressure | 175bar |
| Impact Oil Flow | 80-100L/min |
| Max. Rotation Torque | 830Nm |
| Rotation Speed | 250rpm |
| Max. Rotation Pressure | 150bar |
| Rotation Oil Flow | 30-44L/min |
| Drilling Diameter Range | 43-115mm |
| Compatible Shank Adapters | T38/T45/T51 |
| Operating Weight | 180kg |
Accessories
Spline wear sleeve
Main drive gear
Shank
Piston
Diaphragm
Drill string flushing
