RD 22S
  • Impact Output Power: 22kW
  • Drilling Diameter: Ø89-127mm

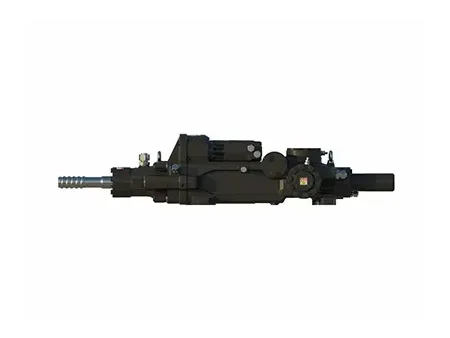

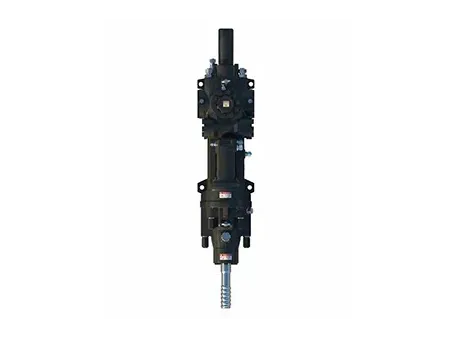

The RD 22S hydraulic drifter features a two-stage damping system and a dual-circuit hydraulic design. With a robust 22kW output power, this hydraulic drifter is specifically engineered for demanding applications in underground and open-pit mining, tunneling, water conservancy, national defense, and other projects requiring rock drilling.
The RD 22S hydraulic drifter is compatible with T45 (standard) and T51 shank adapters.

Product Parameters
Max. Impact Power 22kW
Impact Frequency 38Hz
Max. Impact Pressure 200bar
Impact Oil Flow 120L/min
Max. Rotation Torque 1522Nm
Max. Rotation Speed 0-140rpm
Max. Rotation Pressure 140bar
Rotation Oil Flow 75L/min
Drilling Diameter Range 89-127mm
Compatible Shank Adapters T45/T51
Operating Weight 230kg
Accessories

Drill string flushing

Diaphragm

Spline copper sleeve

Shank adapter

Shank bushing

Eaton hydraulic motor
