PCBN Tools (Tool Bits for Whirling), VNGA

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-vnga-2-2-7.html

Technical Specifications

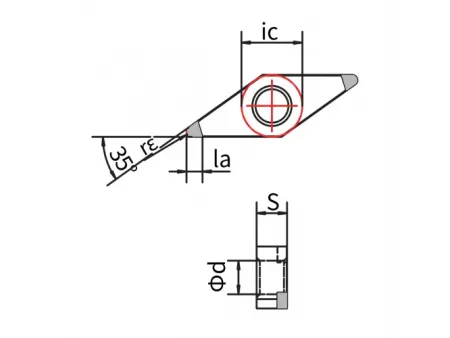

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
VNGA160404	VNGA331	2N	Standard	9.525	3.81	4.76	0.4	2.2	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160404	VNGA331	2N	Chip breaker	9.525	3.81	4.76	0.4	2.2	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160404	VNGA331	2N	Standard	9.525	3.81	4.76	0.4	3	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160404	VNGA331	2N	Chip breaker	9.525	3.81	4.76	0.4	3	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160408	VNGA332	2N	Standard	9.525	3.81	4.76	0.8	4	●	●	●
VNGA160412	VNGA333						1.2
VNGA160416	VNGA334						1.6
VNGA160408	VNGA332	2N	Chip breaker	9.525	3.81	4.76	0.8	4	●	●	●
VNGA160412	VNGA333						1.2
VNGA160416	VNGA334						1.6
VNGA160404	VNGA331	4N	Standard	9.525	3.81	4.76	0.4	2.2	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160404	VNGA331	4N	Chip breaker	9.525	3.81	4.76	0.4	2.2	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160404	VNGA331	4N	Standard	9.525	3.81	4.76	0.4	3	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160404	VNGA331	4N	Chip breaker	9.525	3.81	4.76	0.4	3	●	●	●
VNGA160408	VNGA332						0.8
VNGA160412	VNGA333						1.2
VNGA160408	VNGA332	4N	Standard	9.525	3.81	4.76	0.8	4	●	●	●
VNGA160412	VNGA333						1.2
VNGA160416	VNGA334						1.6
VNGA160408	VNGA332	4N	Chip breaker	9.525	3.81	4.76	0.8	4	●	●	●
VNGA160412	VNGA333						1.2
VNGA160416	VNGA334						1.6
