180DG/210DG

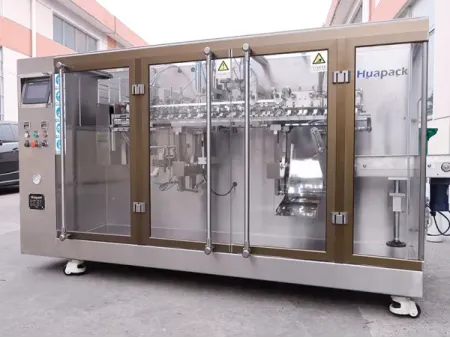

The premade shaped pouch packaging machines feature a 2-nozzle filling configuration designed for efficient and stable pouch packaging. With an output range of 45 to 85 pouches per minute, these pouch packaging machines are ideal for stand-up pouch applications that require balanced speed and flexibility.

Single-pouch capacity supports volumes up to 200–250 ml, allowing them to handle a wide variety of products. Core components are selected from globally recognized brands such as Siemens, to ensure consistent performance and long-term operational reliability. They are engineered to operate under high- and low-temperature conditions, making them suitable for demanding production environments. These packaging systems are widely used in food, personal care, and pharmaceutical manufacturing, where packaging accuracy, hygiene control, and process stability are essential.

Applications

Process Flow
  • Pouch loading
  • Pouch pick-up
  • Pouch opening
  • Air blowing
  • Filling
  • Pouch shaping
  • Heat sealing
  • Cooling sealing
  • Finished pouch
  • Finished pouch discharge conveyor
Specifications
Models 180DG 210DG
Pouch parameters Min. pouch size (W × H) 60 mm ×130mm 70 mm ×130mm
Max. pouch size (W × H) 90 mm ×250mm 105 mm ×300mm
Max. filling volume (stand-up pouch) 200ml 250ml
Packaging speed ≤100 packs/min ≤100 packs/min
Equipment specifications Dimensions (L × W × H) 2400mm×1100mm×1400mm 2550mm×1100mm×1400mm
Net weight 900kg 1100kg
Operating conditions Operating temperature -10℃ to +55℃ -10℃ to +55℃
Relative humidity (non-condensing) ≤ 85% ≤ 85%
Power supply AC380V, 50Hz AC380V, 50Hz
Operating air pressure 0.6Mpa 0.6Mpa
Air consumption 560L/min 560L/min
Motor power 3.5Kw 4.5Kw
Optional Functions

Zipper opening

Pouch hole punching

  • Sombrero hole (butterfly hole)
  • Round hole
  • Special-shape punching
  • Arc hole / Curved slot hole
  • Euro hole

Coding options

  • Hot stamp coding
  • Inkjet printing
  • Laser marking

Sealing patterns

  • Grid pattern
  • Dotted pattern
  • Plain/flat pattern
  • Vertical rib pattern

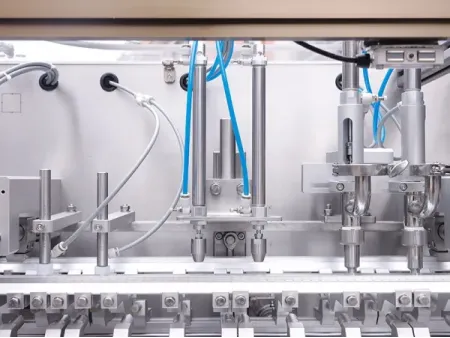

Details
Customer Case Studies

Zhejiang Biotechnology is a bio-tech enterprise focused on the research, production, and sales of seabuckthorn products. Known for its collaborative regional development model and commitment to sustainable practices, they introduced our premade shaped pouch packaging machine (2-nozzle filling) in 2024. The system has performed reliably in production and received positive operational feedback.

The pouch packaging machine features a streamlined structure and corrosion-resistant materials, making it ideal for food-grade cleaning requirements and routine sanitation.
