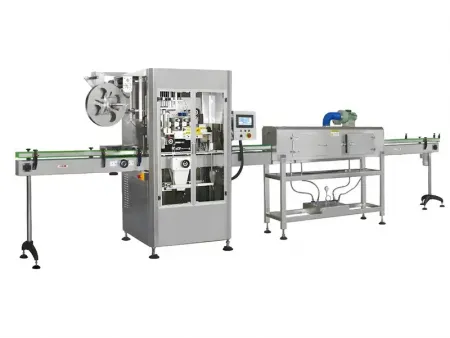

Automatic Shrink Sleeve Labeling Machine
Request a Quote
The automatic shrink sleeve labeling machine uses a servo-driven cutting system to achieve positioning and application of sleeve labels on bottle bodies and necks, with a maximum speed of 150 bottles per minute.

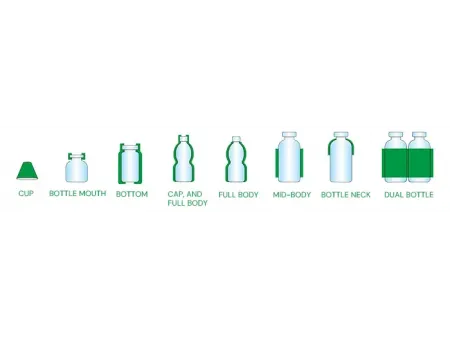

- Cup
- Bottle mouth
- Bottom
- Cap, and full body
- Full body
- Mid-body
- Bottle neck
- Dual bottle
Features
- Japanese servo-driven motors control a synchronized cutting system, extending cutter life and ensuring label accuracy
- Standard production up to 200 bottles per minute; can operate as a production line or as a standalone unit
- The machine frame is made of stainless steel and aluminum machine body provides corrosion resistance
- Adjustable machine head fits round, square, and oval bottles, covering bottle necks and bodies
- Dual feeding system allows movable and alternating placement of sleeves
- Automatic cutter positioning system ensures product detection
- Synchronized cutter holder allows rapid changeover within size range with full cutter change in 2 minutes if required
- Color touchscreen system with English operation implies that machine can run unattended
- Utilizes low-cost disposable blades for easy replacement and reduced costs
- Mechanical steel transmission with reciprocating cutting motion doubles service life of the blade
Specifications
| Model | APTB-150 |
| Speed | Up to 150 bottles/min |
| Main Machine Dimensions | 1000×860×1800 mm (L×W×H) |
| Material & Weight | Full SUS304 Stainless Steel; Approx. 500 kg |
| Power Supply | AC3-PHASE 220V/380V |
| Main Machine Power | 2.5kW |
| Bottle Diameter | ∅25mm –∅125mm |
| Bottle Height | Max. 350 mm (Customizable for special heights) |
| Label Height | 25 mm – 280 mm (Customizable for special lengths) |
| Label Thickness | 0.035 mm – 0.13 mm (Compatible with PVC, PET, OPS) |
| Paper Core I.D. | 5” – 10” (Adjustable) |

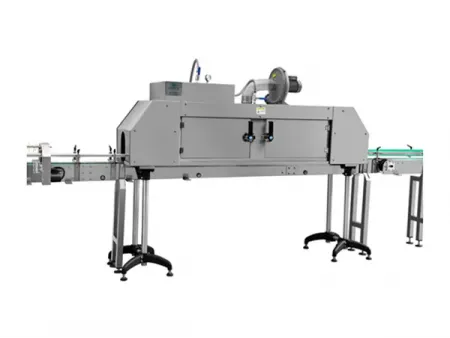

| Shrink Tunnel | Electric / Steam |
