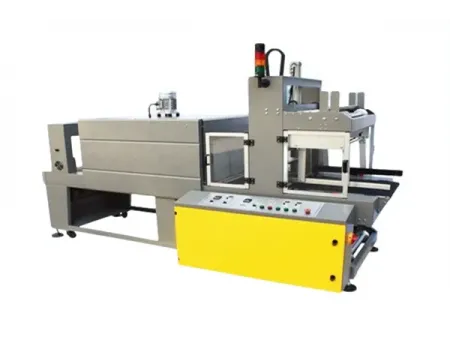

Automatic Shrink Wrapping Machine with Sleeve Sealer
Request a Quote
The automatic shrink wrapping machine with sleeve sealer is a packaging machine designed for heavy and bundled products. It performs sleeve-style sealing and heated shrink for items such as water bottles, beverage trays, and boxed products.
Features
- Integrated automatic sealing and shrinking design saves space and simplifies operation
- Conveyor speed is adjustable via variable-frequency drive
- Top and bottom film rolls are driven and controlled by separate motors
- Single-chamber shrink oven features compact structure and uniform heating
- Oven temperature is controlled by PID system with ±1°C accuracy
Applications
The machine is designed for PE shrink packaging of heavy products, suitable for single or bundled items such as beverage trays, bottles, and boxed goods.
Specifications
| Model | ||
| Power Supply | 380V/3ph, 14 kW | 380V/3ph 14kW |
| Working Air Pressure / Air Consumption | 6 bar, 50L/min | 6 bar, 40L/min |
| Max. Sealing Size | 600mm | 600mm |
| Max. Product Height | 300 mm | 300 mm |
| Max. Capacity | 10 P/min. | 12 P/min. |
| Working Height | 850mm | 850mm |
| Max. Film Roll | W 600- ∅ 350mm X2 | W 600-∅ 350mm X2 |
| Machine Dimensions (L×W×H) | 3110×1360×2410 mm | 3100×1360×2140 mm |
| Packing Size (L×W×H) | 3260×1460×2230 mm | 3260×1460×2230 mm |
| Machine Weight (NW / GW) | 765/1150 | 765/1150 |
How well does PE shrink wrapping support beverage multipack bundling requirements?
How well does PE shrink wrapping support beverage multipack bundling requirements?
PE shrink film has toughness that meets the needs of multipack beverage bundling.
