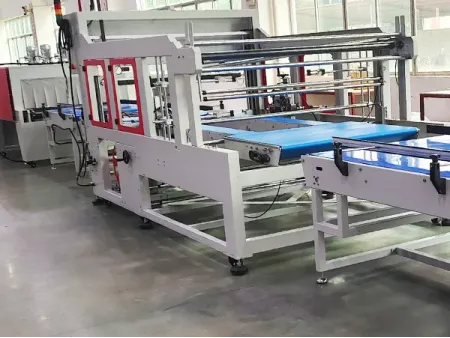

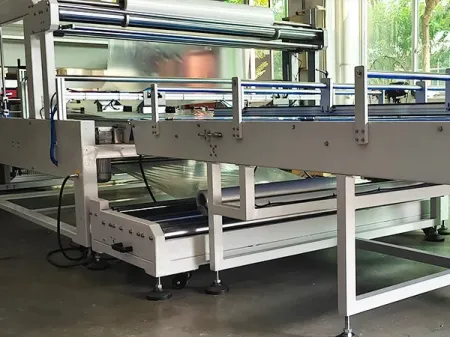

Automatic Shrink Wrapping Machine with Four-Side Seal
Request a Quote
The automatic shrink wrapping machine with four-side seal is a roll-film wrapping system, designed for large, flat products such as doors, wooden flooring, picture frames, and cartons.
APW-15040-2SS
- ModelAPW-15040-2SS
- Power Supply380V/3Ph/7000W
- Air Supply / Air Consumption6 Bar/30L/min.
- Sealing Bar Width1500mm
- Max. Pack Height450mm
- End Seal Drive MechanismMotor
- Max. Conveyor Speed20m/min.
- Applicable ProductCarton Box (Tall products)
- Center Seal FunctionYes
APW-15020-2SS
- ModelAPW-15020-2SS
- Power Supply380V/3Ph/5000W
- Air Supply / Air Consumption6 Bar/30L/min.
- Sealing Bar Width1500mm
- Max. Pack Height200mm
- End Seal Drive MechanismCylinder
- Max. Conveyor Speed20m/min.
- Applicable ProductDoor, Wood Floor (Flat products)
- Center Seal FunctionNo
Applications
Suitable for four-side wrapping of oversized flat products such as large doors, picture frames, and cartons.
Samples
Features
- Uses two single-layer films at the top and the bottom with adjustable side-seal mechanisms, which allows four-side wrapping for large products and provided dust and moisture protection
- Bottom film can be mounted on an external roll stand
- PLC with color touchscreen system has program memory for simple operation and product size adjustments
- Standard infeed and outfeed enable automatic integration with upstream and downstream equipment
- Robust machine frame for heavy products
- Equipped with two automatic scrap film collection units
For furniture accessories, how effective is a four-side sealing process in improving dust protection?
For furniture accessories, how effective is a four-side sealing process in improving dust protection?
Four-side wrapping reduces dust contamination, helping to protect large products during transportation.
