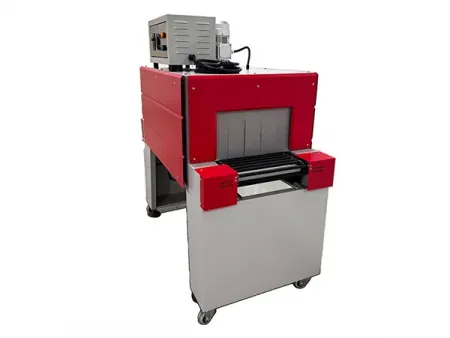

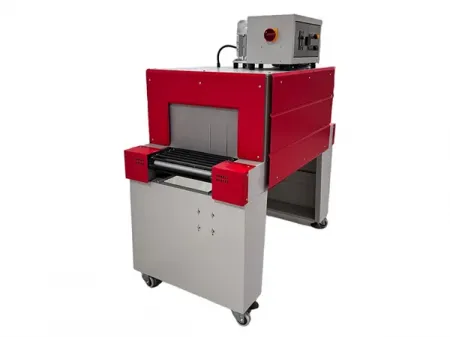

Shrink Tunnel for POF Film (Economic)
Request a Quote
Applications
Shrink wrap products use POF film to protect products against dust and moisture while enhancing appearance.
Features
- Economical internal heating with metal heating tubes and air recirculation to ensure right temperature in the tunnel. Double-layer insulation curtains reduce heat loss for optimal shrink results
- Digital temperature control and adjustable conveyor allow adjustment and shrink quality
- Rotating roller conveyor with rollers covered in high-temperature silicone sleeves supports heavy products without deformation, and dust protection with optional Teflon belt is available
- Automatic shutdown cuts power when tunnel temperature drops to 70°C, saving cooldown time and protecting equipment longevity
- Adjustable tunnel height accommodates different product sizes and simplifies operation
Details
Specifications
| Model | |||
| Shrink Tunnel Size | L1000×W450×H250mm | L1100×W450×H250mm | L1100×W550×H300mm |
| Machine Dimensions | L1655×W830×H1555mm | L1550×W700×H1525mm | L1550×W750×H1575mm |
| Power Supply | 3Ph/380V, 50Hz, 10kW | 3Ph/380V, 50Hz, 9.5kW | 3Ph/380V, 50Hz, 12kW |
| Packing Wooden Case Size | L1650×W880×1070mm | L1630×W770×1070mm | L1650×W880×1070mm |
| Machine Weight | 250/320kg | 280/365kg | 460/540kg |
