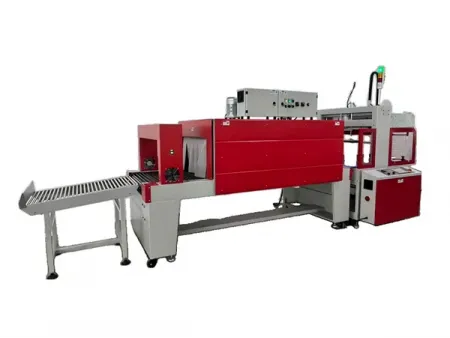

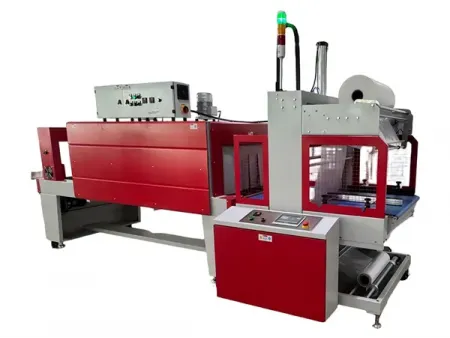

Shrink Tunnel for PE Films

Request a Quote

Website: http://packmachinery-en.com/shrink-tunnel-pe-films-5-3.html

Leave a Message

Applications

Shrink tunnel for PE films protects products against dust and moisture while improving appearance.

Features

• Fan at the top for precise stream of hot air
• Roller conveyor
• Variable-frequency drive for stepless conveyor speed adjustment
• Digital temperature control for heating
• Cooling fan at the tunnel exit to cool products
• Metal heating tubes

Specifications

Model	APT-6040PE-I	APT-6040PE-II	APT-8040PE-II
Shrink Tunnel Size	L1200×W600×H600mm	L1800×W600×H400mm	L1800×W800×H400mm
Machine Dimensions	L2200×970×H1600mm	L2800×W970×1600mm	L2800×W1170×H1600mm
Power Supply	3ph/380V, 12kW	3ph/380V, 18kW	3ph/380V, 21kW
Max. Conveyor Speed	15m/min	20m/min	20m/min
Packing Wooden Case Size	L2160×1060×H1870mm	L1960×1090×H1870mm	L2960×W1280×H1920mm
Machine Weight (Net / Gross)	420/600kg	640/800kg	850/1010kg
