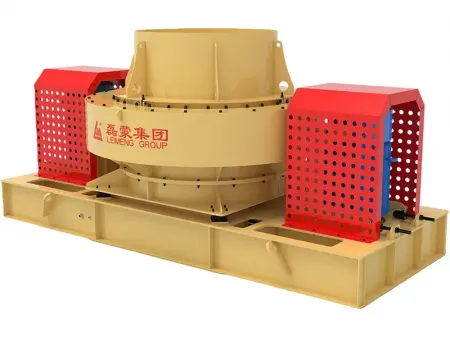

LM Series Sand Making Machine
Vertical shaft impact (VSI) crushers, also known as sand making machines, are widely used not only for extremely hard materials but also for fine and ultra-fine crushing in applications with large variations in material properties. Typical applications include manufactured sand production, cement pre-grinding, and refractory materials processing.
Applicable materials include granite, basalt, limestone, quartz stone, gneiss, cement clinker, concrete aggregates, ceramic raw materials, iron ore, gold ore, copper ore, corundum, bauxite, silica, and similar materials.
-
Multiple crushing modes (rock-on-rock, rock-on-metal) to meet different crushing requirements
-
Multiple optional components, with key parts using internationally recognized brands
-
Wide applicability to a broad range of materials
-
Energy-saving and environmentally friendly design, with no additional auxiliary devices required

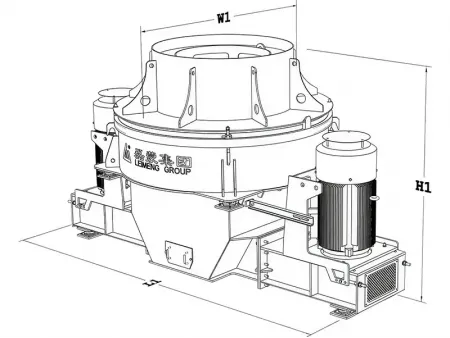

| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| | 2750 | 1970 | 2660 |
| | 3440 | 2180 | 2670 |
| | 4410 | 2180 | 2670 |
| | 4480 | 2540 | 2880 |
| | 4480 | 2540 | 2880 |
| | 4980 | 2540 | 2880 |
| | 4980 | 2540 | 2880 |
| | 4980 | 2540 | 2880 |
| Model | Max. feeding size (mm) | Linear speed (m/s) | Capacity (t/h) | Power (kW) | Installation dimensions (mm) |
| 40 | 60-89 | 53-240 | 160 | 3600×1970×3290 | |
| 40 | 60-89 | 80-430 | 250 | 3910×2180×3810 | |
| 40 | 60-89 | 100-450 | 132×2 | 5000×2180×3810 | |
| 40 | 60-89 | 188-520 | 160×2 | 5200×2540×3910 | |
| 40 | 60-89 | 230-550 | 200×2 | 5200×2540×3910 | |
| 40 | 60-89 | 275-600 | 250×2 | 5810×2540×3910 | |
| 40 | 60-89 | 290-650 | 280×2 | 5810×2540×3910 | |
| 40 | 60-89 | 320-720 | 315×2 | 5810×2540×3910 |
