Metal Coil Unwinder
Used for decoiling parent coil in rubber extrusion and vulcanization line
Julong offers a variety of metal coil unwinding machines that can provide both active and passive unwinding according to your needs. The active unwinder is suitable for unwinding large coil steel strips, while the passive unwinding machine is ideal for decoiling single coil steel strips. The active unwinding machine can be selected based on customer production speed requirements and different methods of loading and unloading steel coils. We can customize steel strip clamping devices according to the size of your steel coils. To ensure smooth supply of carrier material, we have also added scrap detection and breakage detection functions, greatly improving production safety and ensuring product quality.
Application
Mainly used in rubber manufacturing and wire production, the unwinder is located at the starting position of the rubber seal production line, used for placing and unwinding the carrier coils to provide carrier for the production line.

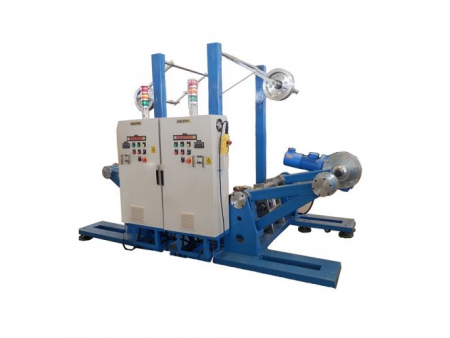

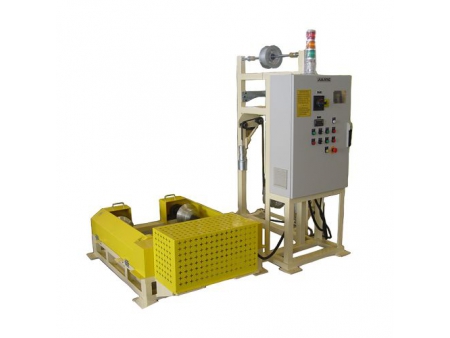

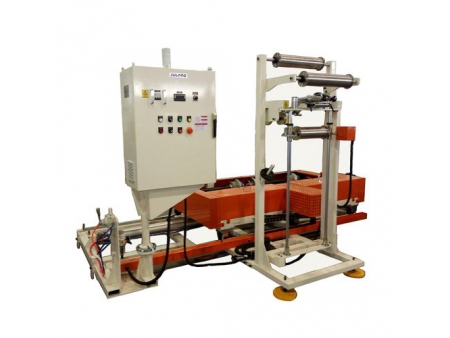

| Model | |||
| Applicable Metal Coil | Large coils of steel or aluminum strips (weight not exceeding 2 tons) | Large coils of steel or aluminum strips (weight not exceeding 2 tons) | Large coils of steel or aluminum strips (weight not exceeding 2 tons) |
| Mounted Metal Coil Quantity | 2 coils, can accommodate different specifications of coils | 2 coils, can accommodate different specifications of coils | 1 coil, can accommodate different specifications of coils |
| Dimension of Metal Coil | Inner diameter: Ø100-Ø300mm Max. outer diameter: Ø1000mm Max. weight: 2T | Outer diameter: Ø800-Ø1000mm Max. width: 1000mm Max. weight: 2T | Outer diameter: Ø800-Ø1000 mm Max. width: 800mm Max. weight: 1.5T |
| Speed | 4-35m/min, variable frequency speed regulation | 4-35m/min, variable frequency speed regulation | 4-35m/min, variable frequency speed regulation |

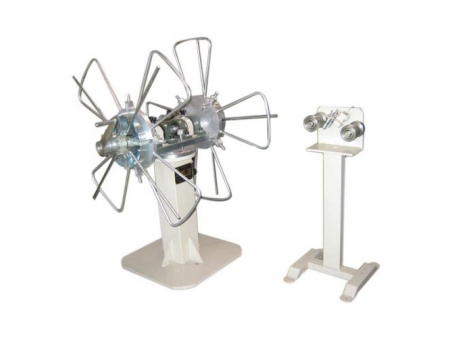

| Model | |
| Dimensions | L900×W770×H1200 |
| Metal Coil Width | 40±5mm |
| Mounted Metal Coil Quantity | 2 coils, inner diameter: 100mm, outer diameter: 750mm |
| Operating Method | Manual |
| Metal Carrier Detection | Inventory lower limit forecasting alarm function for metal carrier |
