SNQ400 MIG/MAG Welding Gun
Request a Quote
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 400A
Rating: Mixed Gas: 320A
Duty Cycle: CO2 100% Mixed 60%
Wire Size: 0.8-1.6
Model
| Description | Length | Part Number |
| SNQ 400, Welding Gun c/w Miller Fitting | 10ft/3M | SNQ 400-10M |
| 12ft/3.6M | SNQ 400-12M | |
| 15ft/4.5M | SNQ 400-15M | |
| SNQ 400, Welding Gun c/w Euro Fitting | 10ft/3M | SNQ 400-10E |
| 12ft/3.6M | SNQ 400-12E | |
| 15ft/4.5M | SNQ 400-15E |

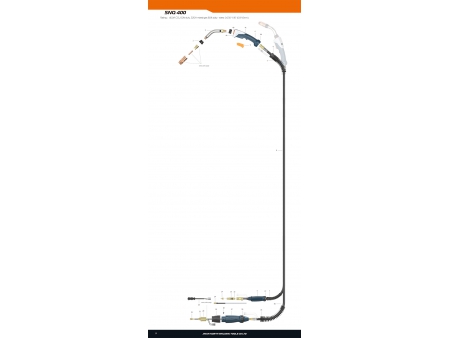

Components
| No. | Part Number | Description |
| 1 | 4323 | Rubber Cap |
| 2 | QT3-45 | Swan Neck 45° |
| 3 | 1840057 | Locking Nut |
| 4 | NH0105 | Handle |
| NH010501 | Torch Handle L | |
| NH010502 | Torch Handle R | |
| 4a | NH010203 | Front Cover |
| 4b | NH010503 | Adaptor |
| 4c | NH010205 | PCB Holder |
| 4d | NH010208 | Locking Nut |
| 5 | BEJ2005B | Trigger PMS1585C |
| 6 | NH010305 | Ball Joint |
| 7 | 142SBJ02 | Front Cable Support Spring |
| 8 | SBL4010 | Cable Assembly 10ft/3m |
| SBL4012 | Cable Assembly 12ft/3.6m | |
| SBL4015 | Cable Assembly 15ft/4.5m | |
| 8a | BEL4010 | Cable Assembly 10ft/3m |
| BEL4012 | Cable Assembly 12ft/3.6m | |
| BEL4015 | Cable Assembly 15ft/4.5m | |
| 9 | KS3201 | Back Cable Support Spring |
| 10 | NH020103 | Locking Nut |
| 11 | NH020102 | Back Handle L |
| NH020101 | Back Handle R | |
| 12 | Q512526 | O-Ring 12.5x2.65 |
| 13 | MU0006 | Connector Miller |
| 14 | BMU0014 | Nipple For Miller Connection |
| 15 | 8M9500 | Back Cable Support Spring |
| 16 | NH020204 | Locking Nut |
| 17 | NH020201 | Back Handle L |
| NH020202 | Back Handle R | |
| 18 | Q210406B | Screw M4x6 |
| 19 | NH020203 | Gun Plug Nut |
| 20 | BEU2001 | Bernard Euro Gun Plug |
| 21 | Q505217 | O-Ring 5.28x1.78 |
| 22 | Q504010 | O-Ring 4x1 |
| 23 | MV0004 | Miller 4 Pin Plug Assembly |
| 24 | Q506018 | O-Ring 6x1.8 |
*Must indicate part number for clear model classification.
