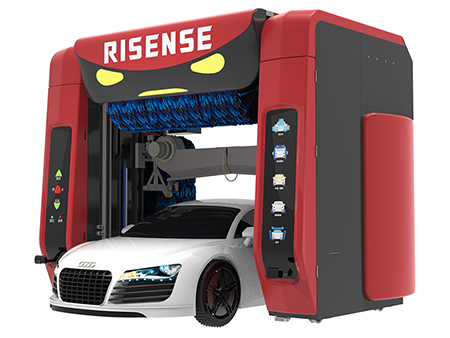

Automatic Car Wash Machine – Robot Series, CF-390
CF-390 Automatic car washing system is our newly developed smart car wash equipment, which is equipped with smart brush set, containing tire brush, large vertical brush, top brush. This enables it to realize all-round car washing in a smart, water-saving and accurate manner.
Smart car-width detection device is equipped to stop and remind-to-correct body misalignment issue; Refined look with elegant streamlined design.
- Fully automatic PLC control system ensures efficient and precise operation.
- Click the button to start washing, simple and convenient
- Error code and possible cause clearly displayed on screen, allowing for convenient troubleshooting
| Rollover car wash machine CF-390 | |
| Overall dimension | 2500*3960*3050mm |
| Rail: 9000*3200mm, height of drag chain: 3150mm | |
| Installation size | 11000*4300*3300mm (leave some space at both sides for access) |
| Voltage | AC 380V 50Hz |
| Water supply | Pipe diameter: DN25, water flow≥80L/min |
| Air-source pressure | 0.75-0.9MPa |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car/jeep/coach within 10 seats |
| Moving range | 5400*2100 (mirror folding)*2100mm |
| Car wash capacity | One rollover: 2'45'', two rollovers: 5'20'', three rollovers: 7'20'' |
| Water consumption | One rollover: 85L/car, two rollovers:110L/car, three rollovers:130L/car |
| Power consumption | 0.46-0.65kWh/car |
| Shampoo consumption | 15ml/set |
| Wax consumption | 20ml/set |
| Short vertical brushes | 2 |
| Long vertical brushes | 2 |
| Top brush | 1 |
| Frame | ZFC alloy steel hot-dipped galvanized steel frame |
| Brush material | The 4th-generation foam brush |
| Control system | MCU (Risense) |
| Optoelectronic monitoring | Banner from the USA |
| Proximity Switch | PEPPERL FUCHS from Germany |
| Contactor | Siemens from Germany |
| Solenoid valve | Pinguan |
| Thermal relay | Schneider from France |
| MCCB | Schneider from France |
| Motor protector | Schneider from France |
| Intermediate relay | Honeywell from the USA |
| Elevating motor with brake | SITI |
| Brush rotating motor | SITI |
Pre-wash --- foaming --- brushing --- water spraying --- water wax spraying --- drying
1. Multifunctional barrier gate
The barrier gate can also be used for vehicle height limit, automatically lifts when the customer scans the QR code to start the process.
2. Smart brush set
-
Tire-brush-following water spray
Water spray following the tire brush, accurate and water-saving, complete wheel cleaning. -
Large vertical brush smart-leaning
The large vertical brush can be smartly leaned to fit and cover the car, enabling better washing performance. -
Top brush
Lift top brush control, steady and accurate.
3. Process notification

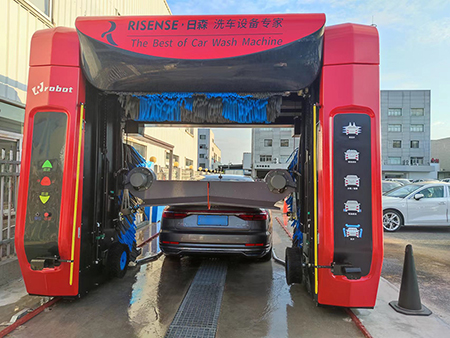

Smart Forward-Stop-Backward notification displayed on the left panel, washing process display on the right panel, clearly showing customer the current washing process.
4. Efficient and silent blower dryer
Built-in blower dryer with elegant look and intensive structure. The dryer moves along with the main washing parts, able for mobile and contour-following drying. Upgraded powerful and silent blower, featuring high drying performance, eco-friendliness and low noise.
