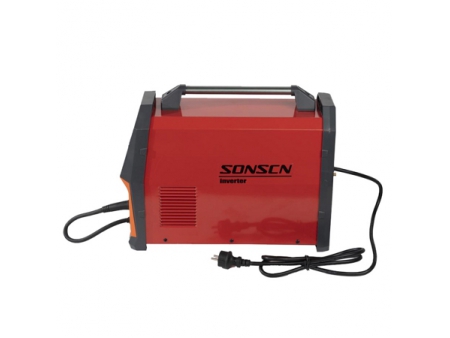

MIG 200 Dual Pulse Synergy
MIG 200 dual pulse synergy can handle workpieces with a minimum thickness of 0.8mm, and it's excellent arc starting performance makes welding operations very easy. In addition, this model is also capable of easily handling cellulose electrodes such as E6011 and E6010. Its superior arc stability, little splash, and deep penetration further ensure the achievement of high-quality welding.
| Model | MIG-200 |
| Rated Power Voltage | AC 230V±10% 50/60hz(1ph) |
| Rated Input Current | 35A |
| Rated Input Power | 7.7KVA |
| No-load Voltage | 69V |
| Rated Duty Cycle | 30% |
| Power factor | 0.73 |
| Efficiency | 85% |
| Dimension | 49*22*37.5cm |
| Weight | 10.6kg |
- Versatile 4-in-1 welding machine
This multi-process welding machine is perfect for MMA, lift TIG, gas (solid) wire MIG, gasless (flux) wire MIG welding.
- Synergy control for easy use
With the synergy function, adjust the wire thickness, the voltage and wire feeding speed will automatically change. Even beginners can use it with ease.
- Lift TIG capabilities
Allows for easy arc start by touching the workpiece with a tungsten electrode, starting current and shielding gas, and then quickly lifting the TIG torch, without the need of scratching.

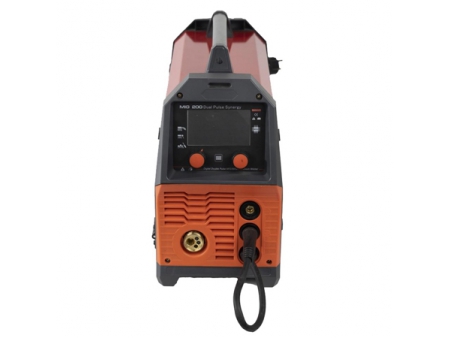

- User-friendly interface
The 3.5inch intelligent LED screen provides you with accurate data display (current, Electrode Diameter, function mode and welding type) and more choices, helps you read it easier and more clearly.
- Premium welding performance
it provides little splash, deep molten pool and beautiful weld shape.
Aluminum alloy welding, welding process for door and window manufacturing, fence installation, etc.
