YYQ-1.6

Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 200mm and weight of 0.1-1.6kg

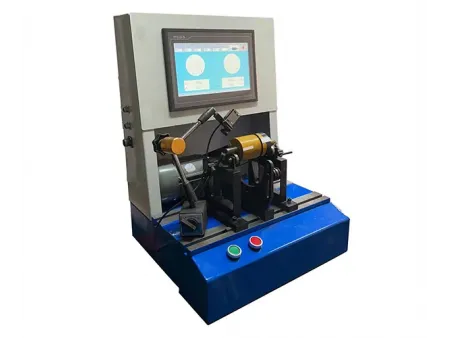

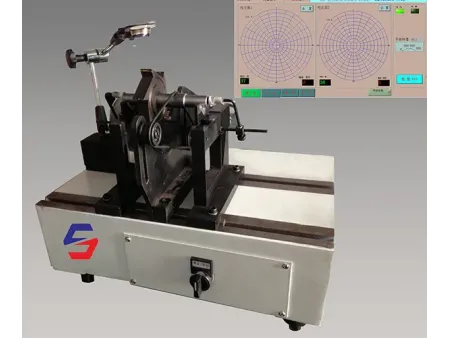

Small horizontal hard-bearing balancing machine with belt drive
Suitable for workpieces with sizes up to 200 mm and weigh up to 1.6 kg
Maintains unbalance resolution below 0.3 g·mm/kg, even with very light components
Compact and portable structure with minimal floor space requirements
Can handle different small workpieces for applications in various industries

Applications

Used for balancing small rotating parts such as micro motors, power tools, small fans, high-speed components in gasoline and diesel engines, fast-running gears and shafts, and specialized parts in textile machinery.

Specifications

Workpiece weight	0.1-1.6kg
Max. workpiece diameter	Ø200mm
Journal diameter of workpiece	Ø2-Ø25mm
Distance between two bearing supports	40-400mm
Balancing speed	800-3000r/min
Min. achievable residual unbalance (eMar)	≤0.3g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Equipped with piezoelectric sensors that are lightweight, easy to install, and can be integrated into a workbench or equipment cabinet
Suitable for tasks that require frequent measurements and for rotors with light loads
Measuring system offers high integration and complete functionality.
Users can choose the ZL-210 dynamic balancing measuring system as an option
