Horizontal Balancing Machine
Request a Quote

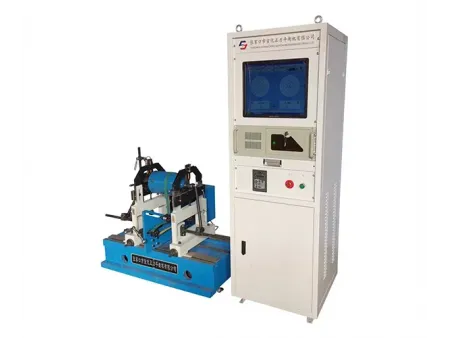

YYQ-50
Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 900mm and weight of 1-50kg
- Belt drive horizontal hard-bearing balancing machine designed for versatile use with different rotating parts
- Supports workpieces up to 900 mm in diameter and 50 kg in weight
- Balancing speed can be adjusted to match the actual operating speed of the component, improving test reliability
- Smooth and safe operation without interference from universal joint drive
- Reduced impact of shaft bending in long rotors, ensuring higher measurement accuracy
Applications
Suitable for dynamic balancing of motor rotors, crankshafts, centrifuge rotors, and small to medium blower rotors. It is also used to machine tool spindles, textile machinery parts, internal combustion engines, and other rotating components in electronics and machinery.
- Motor rotors balancing
- Crankshafts balancing
- Centrifuge rotors balancing
Specifications
| Workpiece weight | 1-50kg |
| Max. workpiece diameter | Ø900mm |
| Journal diameter of workpiece | Ø10-Ø80mm |
| Distance between two bearing supports | 110-800mm |
| Balancing speed | 350-3000r/min |
| Min. achievable residual unbalance (eMar) | 0.5g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
Features
- Supports single-plane and dual-plane balancing for different types of rotors.
- The interface is easy to follow, so balance tests can be carried out without complexity.
- Fixture eccentricity compensation helps improve the accuracy of results.
- Unbalance values and angles are displayed both numerically and in polar coordinates, so results can be interpreted quickly.
- Measurement results can be saved for later review, printed when needed, and included in customized reports.
- Users can choose from different methods to add or remove weight during correction.
- Balance accuracy can be set in advance, with automatic calculation during operation.
- Reports can be generated in customized formats when required.
- The balancing machine identifies its operating status and verifies communication ports to ensure proper function.
- Mouse and keyboard operation makes it easy to connect with other office equipment.
Examples of Workpieces Our Machines Can Balance
- Pulley balancing
- Standard rotors
- Small fan impellers
- Crankshafts

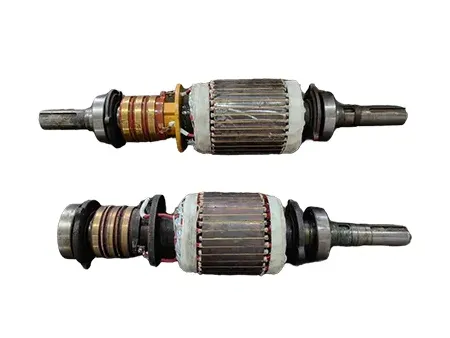

- Motor rotors
