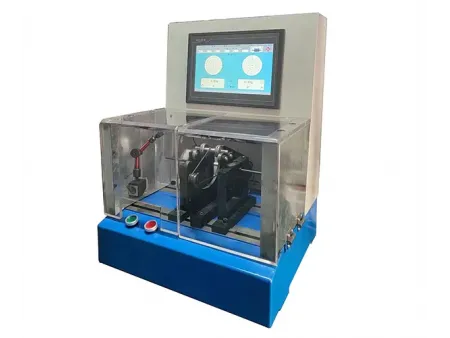

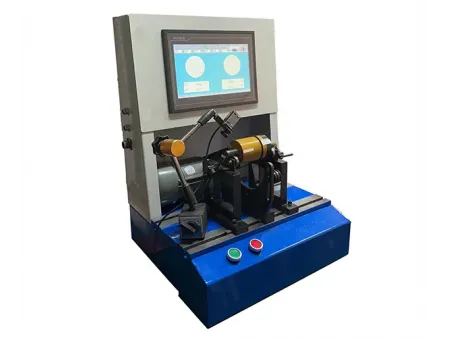

Horizontal Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/1-2-2-13-hard-bearing-balancing-machine.html

YYQ-5

Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 250mm and weight of 0.2-5kg

Horizontal hard-bearing balancing machine with belt drive, designed for small workpieces
Handles workpieces up to 250 mm in diameter and 5 kg in weight
Keeps unbalance resolution below 0.3 g·mm/kg, even with lighter components
Compact and portable design with low space requirements
Reliable option for general balancing of small rotating parts

Applications

Widely used for balancing a wide range of small rotating parts, including micro motors, power tools, small fans, high-speed components used in gasoline and diesel engines, fast-running gears and shafts, as well as specialized parts for textile machinery.

Specifications

Workpiece weight	0.2-5kg
Max. workpiece diameter	Ø250mm
Journal diameter of workpiece	Ø3-40mm
Distance between two bearing supports	55-500mm
Balancing speed	800-3000r/min
Min. achievable residual unbalance (eMar)	≤0.3g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Equipped with piezoelectric sensors that make the setup light, easy to mount, and simple to fit into a bench or cabinet
Designed for tasks that involve frequent testing and rotors with lighter loads
Optional ZL-210 dynamic balancing measuring system available for more accurate and convenient operation
