Horizontal Balancing Machine
Request a Quote

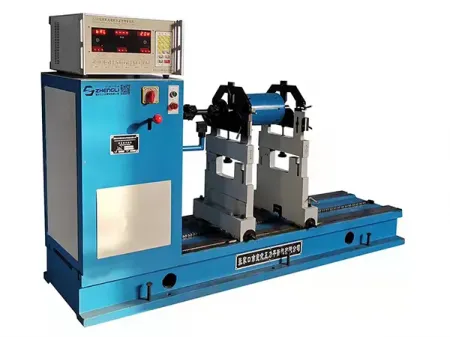

YYW-300
Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 1250mm and weight of 10-300kg
- Horizontal hard-bearing balancing machine for general-purpose use
- Structure keeps the operating speed safely below resonance
- Simple to operate, with permanent calibration for consistent accuracy
- Universal joint drive offers high torque with quick start and stop times

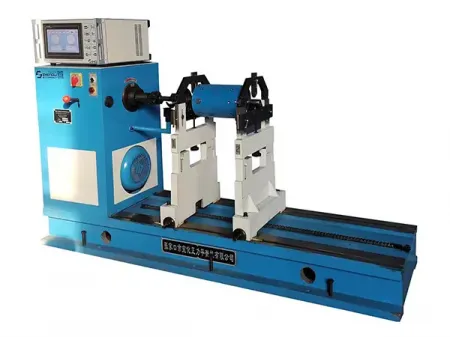

- Available with a digital display unit or an industrial PC measuring system
Applications
Widely used for balancing small to medium rotating parts, including motor rotors, blowers, impellers, cylinders, rollers, and agricultural machinery.
- Motor rotors balancing
- Centrifugal impellers balancing
Specifications
| Workpiece weight | 10-300kg |
| Max. workpiece diameter | Ø1250mm |
| Distance between two bearing supports | 60-1700mm (customizable) |
| Journal diameter of workpiece | Ø10-Ø90 mm (standard) Ø90-Ø180mm (optionally expandable) |
| Balancing speed | Stepless speed control |
| Min. achievable residual unbalance (eMar) | 1g.mm/kg |
| Unbalance reduction ratio (URR) | 95% |
Features
- Equipped with ZHENGLi measuring system, supporting both dynamic and static balancing. It offers up to 10 support methods, customizable options for adding or removing weight, forward and reverse rotation, and unit conversion for balance values and angles.
- Works with either a universal joint or a gearbox drive, allowing multiple balancing speeds or stepless speed control.
- Roller supports use a dual-point design instead of single suspension, giving higher load capacity.
- The spindle end is fitted with a clear angle dial and infrared laser positioning, making it easier to locate points on large-diameter workpieces.
- The spindle also features a telescopic universal joint structure for convenient connection with oversized components.
Examples of Workpieces Our Machines Can Balance
- Standard rotors
- Silage harvester rotors
- Rotors for corn threshing machines
- Augers for plastic machinery, packing machines, and balers
- Fan impellers
- Corn harvester rotors
- Multistage pump rotors
- Roots blower rotors
