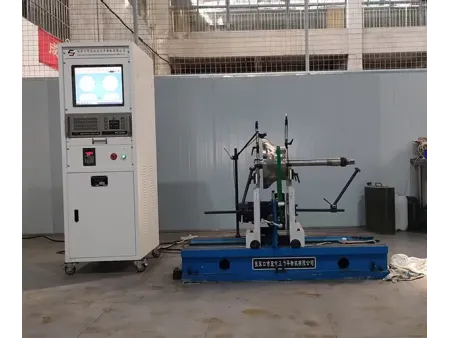

Horizontal Balancing Machine
Request a Quote
YDQ-160/YDQ-300
Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 1250mm and weight of 3-300kg
- Multifunctional hard-bearing balancing machine for the automotive repair industry
- Combines several applications in one machine: crankshaft, driveshaft, wheel, and general rotor balancing
- Hard-bearing structure with belt drive for stable and accurate performance
- Handles workpieces up to 1250 mm in diameter and 3–300 kg in weight
Applications
Used for dynamic balancing of driveshafts, wheels, and crankshafts, providing stable performance and accurate correction during automotive repair tasks.

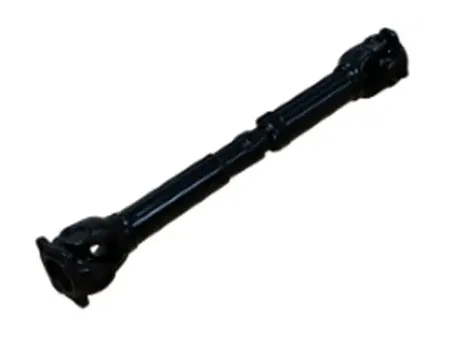

- Driveshafts balancing
- Crankshafts balancing
Specifications
| Model | | |
| Workpiece weight | 3-160kg | 5-300kg |
| Max. workpiece diameter | Ø1080mm | Ø1250mm |
| Journal diameter of workpiece | Ø10-90mm | Ø10-90mm |
| Ø90-180mm | Ø90-180mm | |
| Distance between two bearing supports | 110-2400mm | 110-2400mm |
| Min. achievable residual unbalance (eMar) | 0.5g.mm/kg | 0.5g.mm/kg |
| Unbalance reduction ratio (URR) | ≥85% | ≥90% |
| Drive shaft weight | 3-100kg | 5-100kg |
| Max. drive shaft length | 2100mm | 2300mm |
| Max. tire weight | 65kg | 100kg |
| Crankshaft balancing speed | 300-1000rpm | 300-1000rpm |
| Drive shaft balancing speed | 250-3000rpm | 250-3000rpm |
Features
- Equipped with the ZL-220 dynamic measuring system with digital display, offering permanent calibration and multi-surface calculation. This simplifies operation while providing flexibility and practicality for crankshaft and driveshaft balancing.
- Uses belt drive to avoid the influence of universal joints, which improves measurement accuracy while retaining all the functions of a universal balancing machine.
Examples of Workpieces Our Machines Can Balance
- Crankshaft rotors
