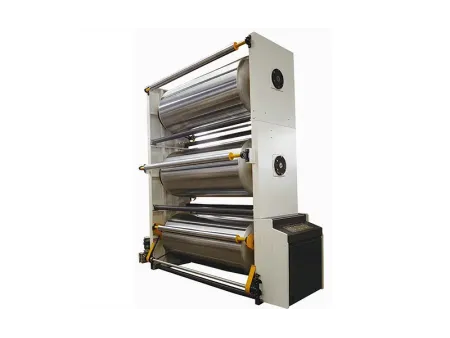

Pre-Heater Machine
Request a Quote
Individual Machines for Corrugated Board Manufacturing
Corrugator preheater unit for precise heat and moisture control to ensure consistent corrugating quality

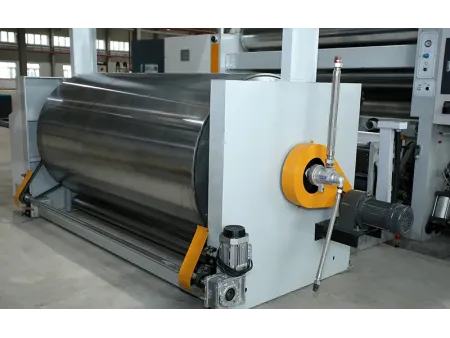

The pre-heater machine uses angle-adjustable steam-heated cylinders to preheat the paper, ensuring proper moisture reduction and optimal bonding performance. The roller surface is precision-ground and hard-chromed, offering high machining accuracy, wear resistance, and electric rotation control. The equipment also supports customization of working width, cylinder diameter, and heating area to meet specific production requirements.
Technical Specifications
| Effective width, mm | 1800 |
| Preheater roller diameter, mm | Ø900 |
| Angle adjustment range | 360° rotation |
| Steam temperature, ℃ | 150-180 |
| Steam pressure, MPa | 0.8-1.3 |
| Equipment dimensions, m | L3.3xW1.1xH1.3 |
