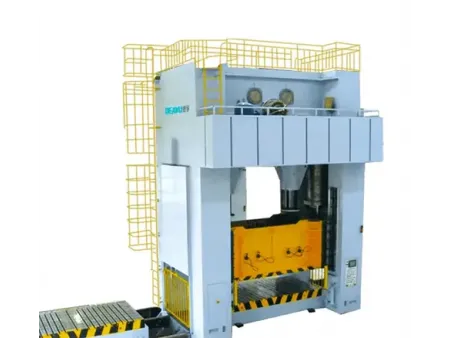

Eccentric Geared Link Motion Mechanical Press

Request a Quote

View All: http://metalforming-en.com/1-8-eccentric-geared-link-motion-mechanical-press.html

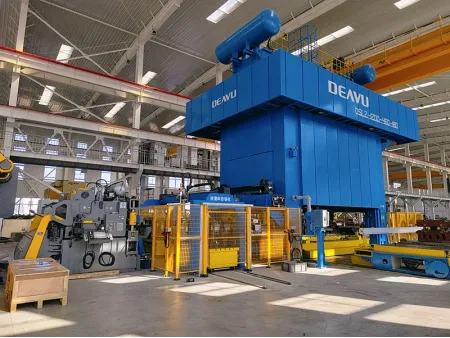

DS2/DSL2 Stamping Presses

Mechanical press for metal stamping, punching, bending, cutting and blanking

Capacity 400T to 1250T
Strokes per minute 8SPM to 25SPM
Stroke length 500mm to 800mm
Slide area 2800×1600mm to 4000×2000mm

The DS2/DSL2 eccentric geared link motion mechanical press features a high-rigidity welded steel frame with top beam, columns, and base connected by four pre-tensioned reinforcement rods, delivering excellent stability and precision for demanding metal stamping, punching, bending, cutting, and blanking operations. This press is designed to handle a variety of production conditions, making it ideal for hardware manufacturing, automotive parts, and precision applications.

With a capacity from 400T to 1,250T and stroke speeds between 8 and 25 SPM, the eccentric geared link motion mechanical press ensures reliable, high-precision performance. Manufactured to Japan’s JIS Grade-1 precision standards, it provides long-term operational stability.

Applications

Hardware: hinges, locks, screws
Automotive components
Other products: seat belt buckles, filter housings, surgical clamp joints

Key Features

Eccentric gear drive system for stable transmission and low noise
High-performance hydraulic overload protection with long, four-sided guideways for excellent accuracy and minimal side force
Automatic circulation lubrication system with fixed-point, fixed-quantity oil delivery and detection for pipeline faults or oil shortages
Expandable for automated feeding systems and high-speed die change systems

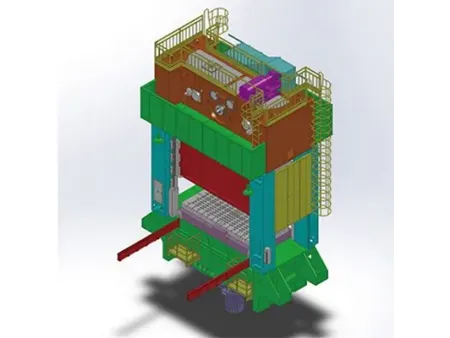

DS2 Detachable Frame Press Front 3D View

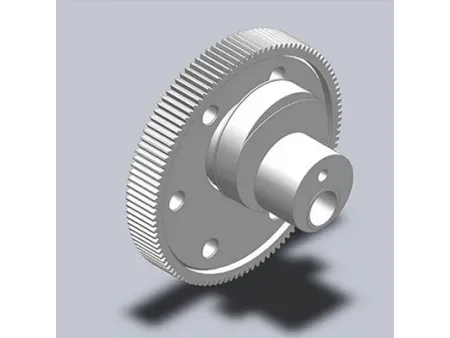

DS2 Eccentric Gear 3D View

Specifications

Model	Unit	DS2-400T	DS2-630T	DS2-800T	DS2-1000T	DS2-1250T
Type		S	S	S	S	S
Capacity	T	400	630	800	1000	1250
Rated tonnage point	mm	13	13	13	13	13
Strokes per minute	S.P.M	8-18	8-18	10-25	8-18	8-18
Stroke length	mm	500	600	600	700	800
Max. shut height	mm	1200	1300	1400	1400	1400
Die height adjustment	mm	500	550	600	650	650
Slide area	mm	2800×1600	3200×1800	3600×1800	4000×1800	4000×2000
Bolster area	mm	2800×1600	3200×1800	3600×1800	4000×1800	4000×2000
Air pressure required	kg/cm²	0.55	0.55	0.55	0.55	0.55
Main motor	kW.p	55	75	90	110	132
Opening in side frames	mm	1600	1800	1800	1800	2000
Slide adjustment mechanism		Electric
Die cushion		1 pad, 2 cylinder
Die cushion capacity	ton	80	100	150	150	200
Die cushion stroke length	mm	200	200	250	250	250
Max. upper-die weight	ton	10	12	15	18	20

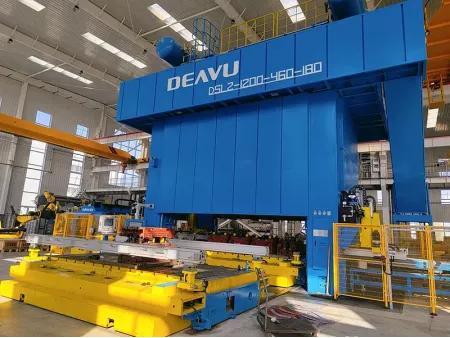

Model	Unit	DSL2-630T	DSL2-800T	DSL2-1000T	DSL2-1250T
Type		S	S	S	S
Capacity	T	630	800	1000	1250
Rated tonnage point	mm	13	13	13	13
Strokes per minute	S.p.m	8-18	8-18	8-18	8-18
Stroke length	mm	800	1000	1100	1200
Max. shut height	mm	1200	1300	1400	1500
Die height adjustment	mm	500	550	600	700
Slide area	mm	3600×1800	3800×1800	4000×2000	4000×2200
Bolster area	mm	3600×1800	3800×1800	4000×2000	4000×2200
Air pressure required	kg/cm²	0.55	0.55	0.55	0.55
Main motor	kW.p	110	132	160	220
Opening in side frames	mm	1800	1800	2000	2200
Slide adjustment mechanism		Electric
Die cushion		1 pad, 2 cylinder
Die cushion capacity	ton	150	200	250 (with optional lock)	250 (with optional lock)
Die cushion stroke length	mm	250	250	300	300
Max. upper-die weight	ton	12	15	18	20

Standard Configurations

Variable speed drive
Hydraulic overload protector
Die area light
Electrical slide adjustment
Photoelectric safety device
Digital die height indicator
Slide and die counterbalance system
Electronic encoder
Misfeed detector
Power socket
Human-machine control system (Defu)
Overrun safety device
Air ejector
Maintenance tool box
Operating manual

Optional Configurations

Wet clutch
Pneumatic die cushion
Foot switch
Quick die change
Slide knockout
Automatic uncoiler
Intelligent manipulator
Moving bolster
Slug detector (Riken Optech Corporation)
Tonnage monitor
Front safety door
Back safety door
Safety die block with plug
Separate clutch and brake
Flywheel brake

Designs are subject to change without prior notice and can be customized according to your requirements.

Download

Our product brochure

The eccentric geared link motion mechanical press provides stable, precise, and efficient performance for high-demand stamping operations. Contact us to learn more and find the right solution for your production needs.
