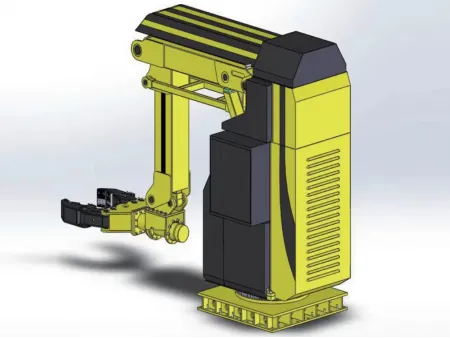

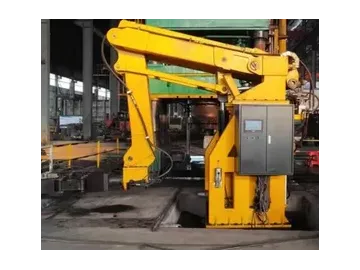

5-Axis Forging Manipulator (0.2-1.2 ton)
Request a Quote
Our factory produces 0.2T-1.2T CNC 5-axis heavy-duty manipulators adapted for the transfer and loading/unloading of blanks in forging workshops, saving labor.

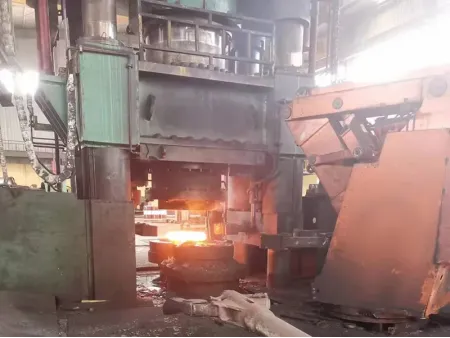

This machine can perform five major movements: rotation, arm telescoping, arm lifting/lowering, clamp flipping, and clamp clamping. It can complete blank transfer work between heating furnaces, ring rolling machines, and presses.
Specifications
| Clamping range (mm) | 300-700 |
| Nominal carrying capacity (kg) | 1000 |
| Rotation radius (mm) | 2800 |
| Control method | Manual, semi-automatic, automatic |
| Installation | Fixed installation |
| Distance from tongs center to floor (mm) | 500-1400 |
| Extension | |
| Stroke (mm) | 1400 |
| Speed (mm/s) | 150 |
| Positioning accuracy (mm) | ±2 |
| Rotation | |
| Rotation angle (°) | ±360 (depending on layout) |
| Positioning accuracy (°) | ±1 |
| Lifting | |
| Min. center height (mm) | 500 |
| Stroke (mm) | 400 |
| Speed (mm/s) | 100 |
| Positioning accuracy (mm) | ±2 |
Is the manipulator prone to malfunction in high-temperature environments?
Is the manipulator prone to malfunction in high-temperature environments?
It adopts a high-temperature resistant design and can operate for short periods in environments up to 1200℃ (continuous operation requires intermittent cooling).
What is the applicable ring part size range?
What is the applicable ring part size range?
Supports O.D. 300mm – 700mm ring part handling. The specific range depends on the gripper and load configuration.
How many axes does the intelligent manipulator have? Is it flexible?
How many axes does the intelligent manipulator have? Is it flexible?
Our intelligent manipulator has 5 axes, possessing high flexibility. It can handle most forging transfer tasks, especially the grasping, flipping, and placement of ring parts. It is suitable for scenarios involving shafts, discs, and rings where the transfer path is relatively fixed.
