Mobile Transport Manipulator (0.6-30 ton)
Request a Quote
The mobile transport manipulator is available in specifications from 0.6 to 30 tons, adapted for furnace material loading and unloading operations in forging workshops where laying tracks is impossible or inconvenient. Among these, 0.6-10 ton specifications can be modified from forklifts, while 3-30 ton specifications can use self-propelled manipulators. This machine can perform eight major movements: straight travel, turning, lifting/lowering, tilting, material clamping, rotation, telescoping, and swinging. It can freely stack materials, transfer, and clamp materials within the workshop and production area.
Specifications
| Model | | |||||||||
| Nominal carrying capacity (kN) | 10 | 20 | 30 | 50 | 80 | 100 | 150 | 200 | 250 | 300 |
| Transmission | Hybrid, hydraulic | Hybrid, hydraulic | Hybrid, hydraulic | Hybrid, hydraulic | Hybrid, hydraulic | Hybrid, hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Clamping range (mm) | 0-800 | 0-1000 | 0-1200 | 0-1400 | 0-1500 | 0-1600 | 0-1800 | 0-2000 | 0-2500 | 0-3000 |
| Tongs center height (mm) | 950-1550 | 1025-1625 | 1100-1700 | 1250-2150 | 1350-2250 | 1500-2500 | 1500-2500 | 1600-2600 | 1600-2600 | 1700-2700 |
| Tilting angle of tongs | 7°/down to floor | 7°/down to floor | 7°/down to floor | 7°/down to floor | 7°/down to floor | 5°/down to floor | 5°/down to floor | 5°/down to floor | 5°/down to floor | 5°/down to floor |
| Steering speed of manipulator (r/min) | 5 | 4 | 4 | 3 | 3 | 3 | 2 | 2 | 2 | 2 |
| Steering angle of manipulator (°) | ±360 | ±360 | ±360 | ±360 | ±360 | ±360 | ±360 | ±360 | ±360 | ±360 |
| Travel speed (m/min) | 60 | 60 | 60 | 50 | 50 | 50 | 40 | 40 | 40 | 40 |
| Working pressure (MPa) | 8-12 | 8-12 | 8-12 | 10-16 | 10-16 | 10-16 | 10-16 | 12-16 | 12-16 | 12-16 |
| Min. installed power (kW) | 22 | 30 | 37 | 45 | 60 | 75 | 82 | 90 | 100 | 135 |

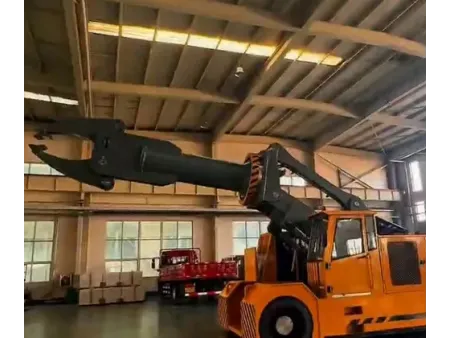

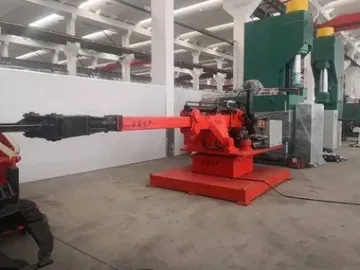

Customer Site Pictures
Does it support different forging shapes?
Does it support different forging shapes?
The gripper jaws of the mobile transport manipulator support quick replacement to accommodate various forging shapes such as round cakes, blocks, rings, and irregular forgings.
Can the mobile transport manipulator and the rail-bound hydraulic forging manipulator be used together?
Can the mobile transport manipulator and the rail-bound hydraulic forging manipulator be used together?
A 'rail-bound rail-less' hybrid system can be designed. For example, heavy workpieces can be transported by a rail-bound machine to a transfer area, then sorted by a rail-less machine to multiple workstations.
Does it support personalized customization?
Does it support personalized customization?
Yes, structural dimensions, load capacity, gripper jaw type, control system, power supply method, etc., can be customized according to production line layout, workpiece characteristics, and operational requirements.
