Digital Ceramic Printing on Glass

Digital Ceramic Printing On Glass

Digital printing of ceramic inks on glass surface

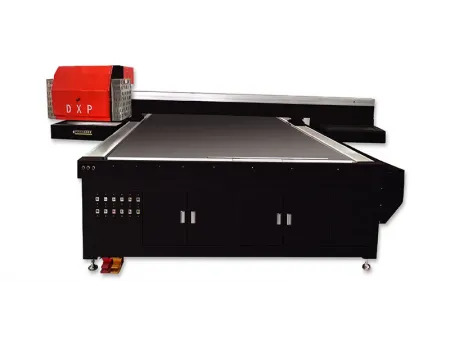

The digital ceramic printing machine is an industrial-grade device that combines digital inkjet printing technology with high-temperature sintering processes. It is designed for high-precision, durable pattern printing on glass surfaces. Through advanced digital printheads, specially formulated ceramic inks are directly printed onto glass. The printed glass then undergoes high-temperature treatment (600-850℃) to fuse the ink with the glass substrate, creating a permanent color layer. This technology surpasses the limitations of traditional screen printing and is ideal for complex patterns, small-batch customization, and high-demand industrial scenarios.

Max. resolution 1600 dpi/2160 dpi
Max. printing area 3300×7000mm
Firing temperature 600-850℃

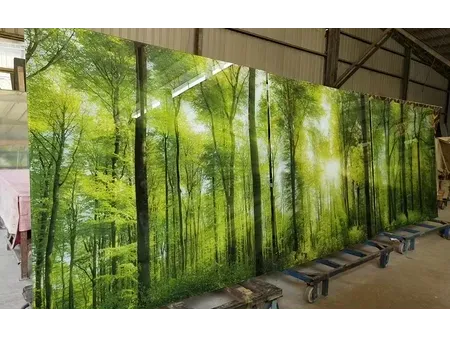

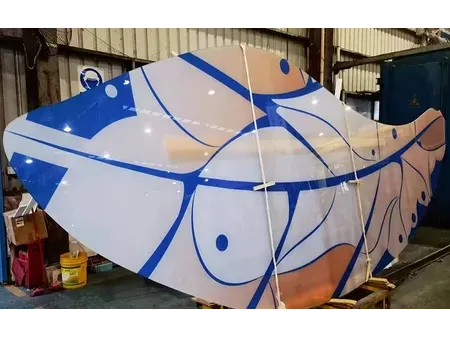

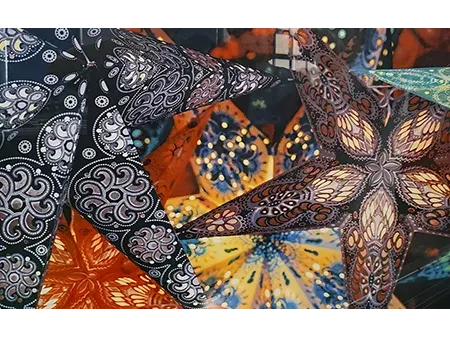

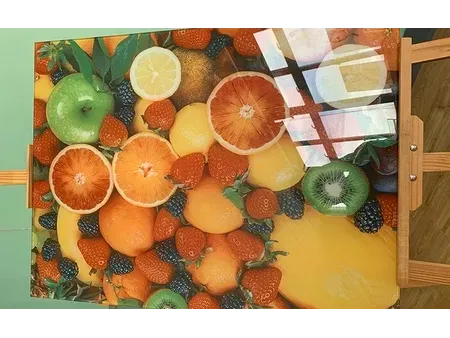

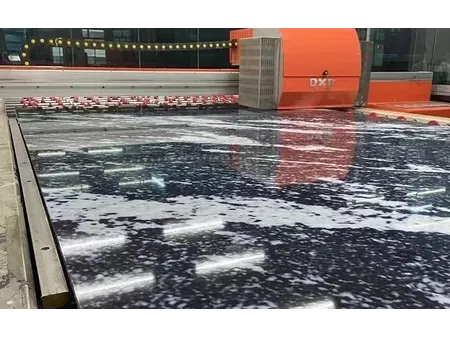

Sample Display

Technical Specifications

Model	DXPG2538/DXPG2550/DXPG3060/DXPG3390
Printhead brand	StarFire, Xaar
Printhead quantity	6/12/18
Max. resolution	1600 dpi/2160 dpi
Max. printing speed	20/40/60 m²/h
Max. printing area	2500×3800/2500×5000/3000×6000/3300×7000mm
Material thickness	0-50mm
Ink type	eco-friendly ceramic inks
Ink color	C, M, Y, K, G, W
Input format	PDF, JPEG, TIFF, EPS, AI
Power consumption	20-35 kW
Electrical requirement	Configurable according to local voltage and frequency requirements.
Environmental requirement	Independent, clean, dust-free, low light exposure, and well-ventilated.
Ambient temperature	22℃ to 28℃(72℉ to 82℉)
Relative humidity	40%-70% (non-condensing)

Features

High-Precision Digital Inkjet Technology
1. Resolution: Supports 1200 dpi and above for ultra-fine printing with smooth gradients.
2. Color Management: Utilizes CMYK white ink or spot color channels, providing wide color gamut coverage. Especially effective for white ink base coating on transparent glass and multi-layer stacking.
3. Variable Data Printing: Real-time processing of unique graphic data for each glass piece, ideal for serial numbers, QR codes, and other personalized content.
High-Temperature Sintering Compatibility
1. Special Ceramic Inks: Contains metal oxides that chemically bond with the glass surface during high-temperature firing, forming a scratch-resistant, acid-alkali-resistant glaze layer.
2. Integrated Sintering Process: Some models are directly connected to a tempering furnace, enabling automated "Print-Dry-Sinter-Temper" workflows for optimal color stability.
Automation and Intelligent Control
1. Auto Calibration System: Visual positioning laser distance measurement for precise alignment on various glass thicknesses (3-19mm), including curved or irregular shapes.
2. Smart Ink Supply System: Monitors ink viscosity and temperature in real-time, ensuring stable ink discharge and preventing nozzle clogging.
3. Production Management Software: Supports MES system integration for scheduling, material monitoring, and remote diagnostics.

Configurations

Standard Configuration
1. 6 printheads (SG1024/Xaar G600), one color per head, 6-color, 6-channel.
2. XY-axis dual linear motor, vacuum suction, belt conveyor platform.
3. Capable of high-definition multi-color pattern printing.
High-End Custom Configuration
1. 6-color, 8-channel, N 2 system, optional frosted ink.
2. Xaar S2 or Starfire G600 printheads, one color per head (or dual color per head).
3. XY-axis dual linear motor with 2μ repeatability, vacuum suction, belt conveyor platform.
4. Includes auto head cleaning, full glass auto-positioning, anti-static system, and anti-splash ink suction system.

Applications

Architectural Glass
Safety Glass
Automotive Glass
Decorative Glass
Custom Industrial Applications

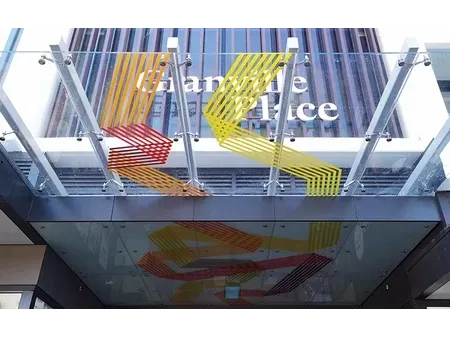

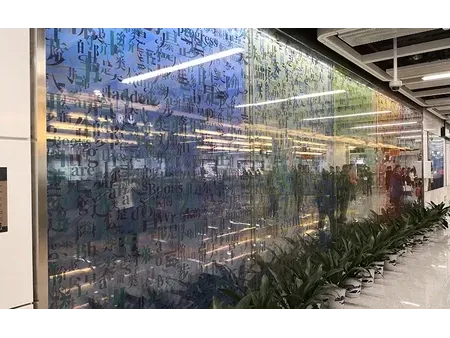

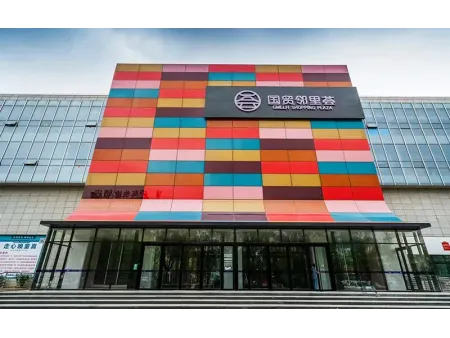

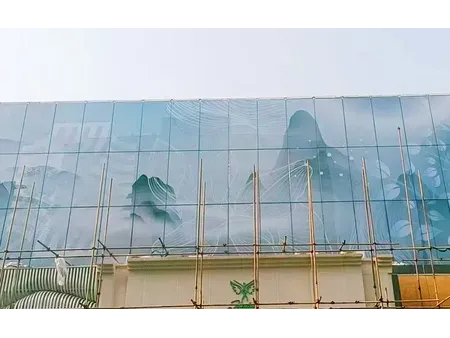

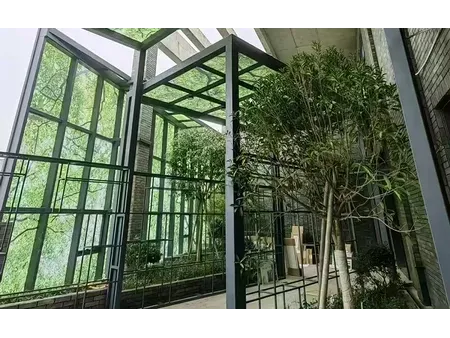

Finished Product Application Display

Elevate your glass printing capabilities with the precision and durability of digital ceramic printing. Bring your designs to life with lasting quality get in touch to discover how you can transform your glass production process!
