Digital Printing on Aluminum
Digital printing of water-based inks on the surface of aluminum sheet
The digital printing machine for aluminum is an industrial-grade device specifically designed for surface decoration and functional coatings on aluminum sheets. It combines digital inkjet technology with high-temperature curing processes. Its core technology uses high-precision printheads to spray special ceramic or metallic-based inks onto the aluminum surface. The printed aluminum is then subjected to high-temperature treatment (200-500℃), enabling the ink to fuse with the substrate, creating a highly adhesive, weather-resistant coating. This technology surpasses the limitations of traditional spraying and anodizing processes, allowing for complex patterns, gradient colors, and small-batch customization. It is widely applied in architectural facades, traffic signage, electronic devices, and industrial components.
- Max. resolution 1600 dpi
- Max. printing area 3300×7000mm
- Firing temperature 200-500℃

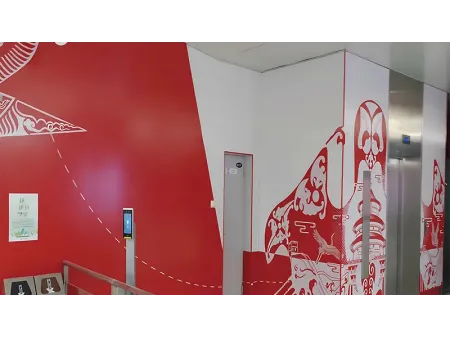

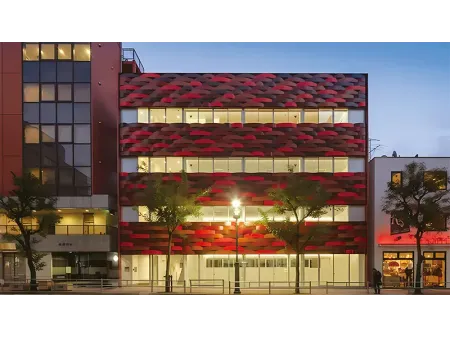

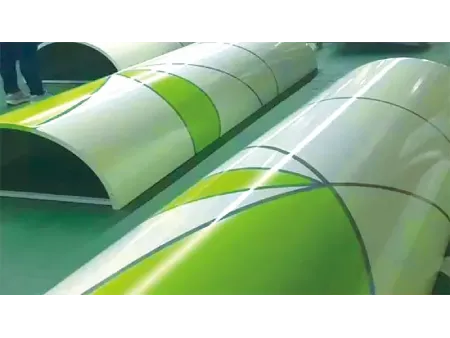

Sample Display
Technical Specifications
| Model | DXPG2538/DXPG2550/DXPG3060/DXPG3370 |
| Printhead brand | StarFire |
| Printhead quantity | 6/12/18 |
| Max. resolution | 1600 dpi |
| Max. printing speed | 20/40/60 m²/h |
| Max. printing area | 2500×3800/2500×5000/3000×6000/3300×7000mm |
| Material thickness | 0-50mm |
| Ink type | eco-friendly water-based inks for aluminum substrate |
| Ink color | C, M, Y, K, G, W |
| Input format | PDF, JPEG, TIFF, EPS, AI |
| Power consumption | 20-35 kW |
| Electrical requirement | Configurable according to local voltage and frequency requirements. |
| Environmental requirement | Independent, clean, dust-free, low light exposure, and well-ventilated. |
| Ambient temperature | 22℃ to 28℃(72℉ to 82℉) |
| Relative humidity | 40%-70% (non-condensing) |
Technical Advantages Over Traditional Methods
| Comparison Item | High-Temperature Digital Printing | Traditional Spraying/Anodizing |
| Pattern Complexity | Supports full-color gradients, high-definition photos | Monochrome/simple color matching, blurred details |
| Production Flexibility | No need for plates, minimum order of 1 piece, instant design change | Plate/mask costs are high, only suitable for large batches |
| Material Utilization | Precise inkjet printing, waste < 2% | Over-spraying waste 20%-40% |
| Environmental Impact | Water-based ink, no heavy metal wastewater | Chromium passivation treatment is difficult |
Main Features
- High-Precision Digital Inkjet System
- Advanced Printhead Technology: Equipped with industrial-grade printheads capable of delivering 1600 dpi resolution for sharp, vibrant images.
- Multi-Layer Printing Capability: Supports detailed gradient patterns, textures, and even metallic finishes.
- High-Temperature Curing Process
- Enhanced Adhesion: Through high-temperature curing (200-500℃), the ink permanently bonds with the aluminum surface, providing exceptional durability.
- Weather Resistance: Coatings are highly resistant to UV radiation, moisture, and corrosion, making them ideal for outdoor applications.
- Broad Application Range
- Architectural facades and decorative panels
- Traffic signs and public information boards
- Electronic device casings and industrial components
- Small Batch Customization and Flexibility
- Perfect for custom designs, limited runs, and prototype manufacturing without the need for large-scale setup costs.
Applications
- Architectural Facades: Durable and weather-resistant aluminum panels for modern building designs.
- Traffic Signage: High-definition prints with enhanced visibility and durability.
- Electronic Devices: Customizable surface designs with metallic finishes.
- Industrial Components: Corrosion-resistant coatings for extended lifespan.
Transform your aluminum products with high-definition, durable, and customizable printing solutions. Get in touch to elevate your designs today!
