Digital Ceramic Printing on Glass Border

Digital Ceramic Printing on Glass Border

Digital printing of ceramic inks on glass borders or desired area

The high-temperature glass single-color border printer is an industrial device designed specifically for printing single-color borders on glass surfaces, combining digital printing technology with high-temperature sintering processes. Its core function is to spray ceramic inks onto the edges or specified areas of glass using high-precision printheads, followed by high-temperature treatment (600-850℃) to bond the ink with the glass, forming a durable border.

Max. resolution 2160 dpi
Max. printing area 3300×9000mm
Firing temperature 600-850℃

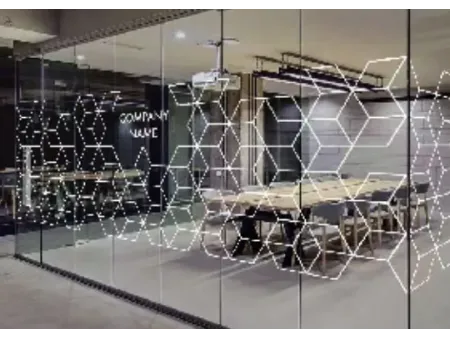

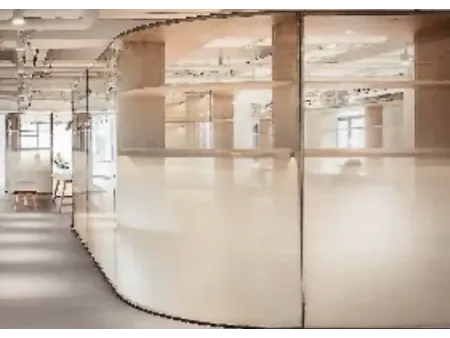

Sample Display

Technical Specifications

Model	DXPG2538/DXPG2550/DXPG3060/DXPG3390
Printhead brand	Xaar
Printhead quantity	4/8/12
Max. resolution	2160 dpi
Max. printing speed	70 m²/h
Max. printing area	2500×3800/2500×5000/3000×6000/3300×9000mm
Material thickness	0-50mm
Ink type	eco-friendly ceramic inks
Ink color	black/white (single color printing), black (border printing)
Input format	PDF, JPEG, TIFF, EPS, AI
Power consumption	20-35 kW
Electrical requirement	Configurable according to local voltage and frequency requirements.

Environmental requirement	Independent, clean, dust-free, low light exposure, and well-ventilated.

Ambient temperature	22℃ to 28℃(72℉ to 82℉)
Relative humidity	40%-70% (non-condensing)

Main Features

Precise Single-Color Printing System
1. Custom color inks: Supports custom formulas for single-color ceramic inks such as black and white, designed for border shading, anti-reflection, or decorative purposes (e.g., black ink with shading rate > 95%).
2. High-precision alignment: Uses a vision positioning system (CCD camera laser distance measurement) to adapt to varying glass thicknesses (4-19mm), ensuring printing position accuracy of less than ±0.1mm.
3. Edge uniformity control: Dynamically adjusts ink volume to avoid ink buildup or discontinuities at the glass edge caused by curvature or cutting burrs.
High-Temperature Sintering Integrated Process
1. Integrated tempering furnace: Some models are connected to a tempering line to achieve a fully automated process from "printing-drying-sintering-tempering," with the border hardness reaching Mohs 7, providing excellent scratch resistance.
Efficient Production & Automation
1. High-speed printing mode: Utilizes a pattern inspection printing method or a scanning-type printing method, specializing in single-color printing (e.g., automotive black). Delivers exceptional performance in automotive glass, advertising glass, and other fields, with linear motor-driven printheads achieving speeds up to 40m/min, and a daily output of over 500m².
2. Intelligent ink management: The closed-loop ink supply system continuously monitors ink viscosity and temperature, preventing sedimentation and clogging, minimizing downtime for maintenance.

Transform your glass borders with high-precision digital ceramic printing! Our advanced glass border printing technology offers unmatched accuracy and durability, ensuring your glass designs stand out with vibrant, lasting color. Whether for automotive, advertising, or architectural glass, experience fast, efficient, and automated printing solutions that meet the highest standards.
Reach out now to create flawless glass borders for your next project!
