DC BACK-LIT LED Rigid Bar
Request a Quote

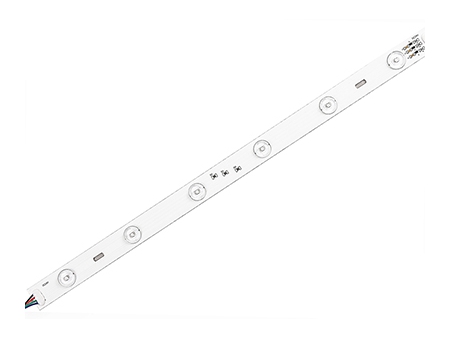

BQ5-A RGB DC LED Rigid Bar
- CCT: 470-100000K
- LED Type: 2830
- Beam Angle: 170°
- Luminous Flux (lm/pcs): 309/608/906/1188
- Power (W/m): 3/6/9/12
- Efficiency (lm/pcs):98.79/104.3/104.1/105
- Voltage: 24 VDC
- IP Rating: IP20
- 3-Year Warrant
- Adopt RGB in one 2830 LED
- Good color-mixing effect and stability
- Special lens with 170° beam angle, suitable for thin light box
- Multi-color changing effect via controller
- Adopt standard terminals for easy usage

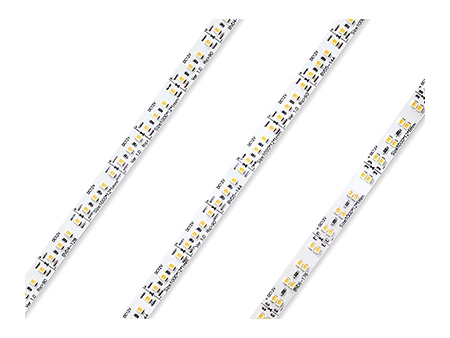

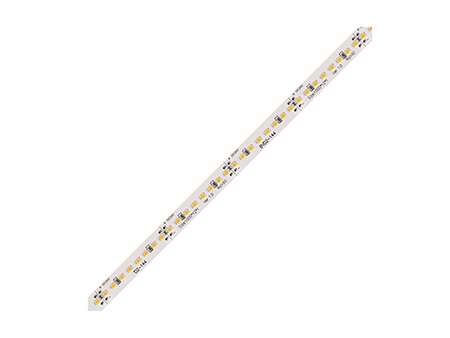

BVDX-XXX 12V DC LED Rigid Bar
- CCT: 470-100000K
- LED Type: 2835
- Beam Angle: 170°
- Luminous Flux (lm/pcs): 48/77/25/142
- Power (W/pcs): 1.92/1.92/1.92/5.76
- Efficiency (lm/W):30/48.2/15.7/29.6
- Voltage: 24 VDC
- IP Rating: IP20
- 3-Year Warrant
- High light quality
- SDCM<3
- High CRI @ R9>90
- Mini cut unit, can be combined with profiles
BVDX-XXX 24V DC LED Rigid Bar
- CCT: 3000/4000/6500K
- LED Type: 2835
- Beam Angle: 120°
- Luminous Flux (lm/pcs): 1279/1393/1212, 1523/1611/1534, 1726/1804/1695
- Power (W/pcs): 11.5/13/15.8
- Efficiency (lm/W):116/126/116, 116/124/115, 116/123/115
- Voltage: 24 VDC
- IP Rating: IP20
- 3-Year Warrant
- High light quality
- SDCM<3
- High CRI @ R9>90
- Mini cut unit, can be combined with profiles

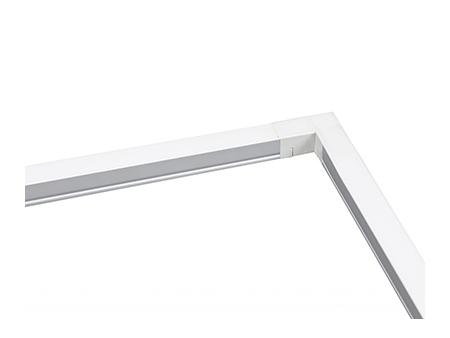

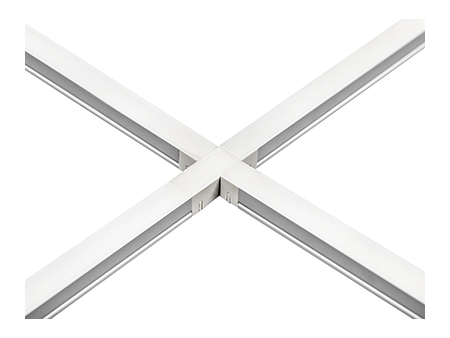

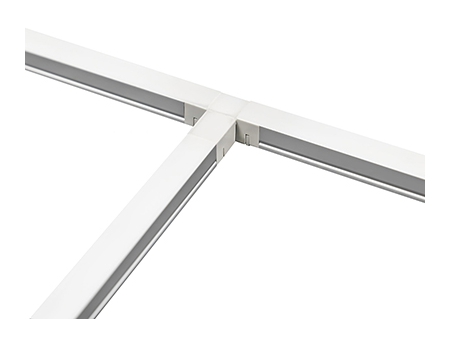

CG2-B-XXXX DC LED Rigid Bar
- CCT: 3000-6500K
- LED Type: 2016
- Beam Angle: 120°
- Luminous Flux (lm/pcs): 426
- Power (W/pcs): 6.6
- Efficiency (lm/W): 65
- Voltage: 24 VDC
- IP Rating: IP60
- 3-Year Warrant
- No dark spot at the linkage point for continuous seamless effect
- Quick connection system
- Various mounting methods including magnetic mounting

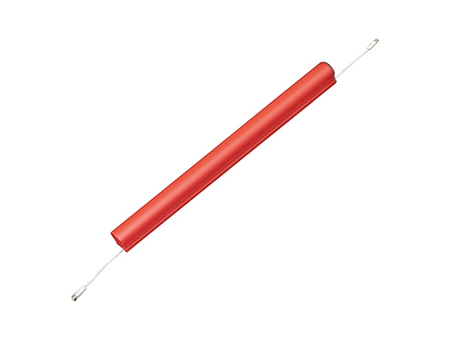

FB-R DC LED Rigid Bar
- CCT: 620-625K
- LED Type: 2835
- Beam Angle: 180°
- Luminous Flux (lm/pcs): 73/146/204/394
- Power (W/pcs): 3.84/7.68/10.75/20.74
- Efficiency (lm/W): 19
- Voltage: 24 VDC
- IP Rating: IP66
- 5-Year Warrant
- Explosion-proof product
- Using a frosted PC cover, offering uniform illumination
- Adopted 2835 LED
- Various specifications are available and support customization

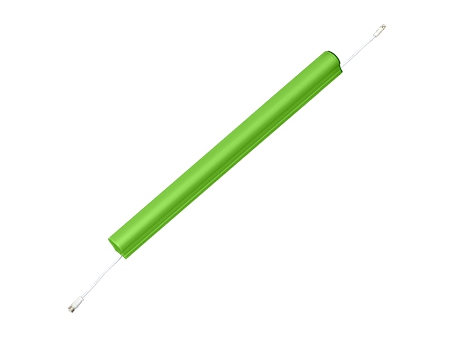

FB-X DC LED Rigid Bar
- CCT: 6700/630-630/525-535K
- LED Type: 2835
- Beam Angle: 180°
- Luminous Flux (lm/pcs): 319/637/892/1721, 134/268/376/725, 65/130/183/353
- Power (W/pcs): 3.84/7.68/10.75/20.74, 3.84/7.68/10.75/20.74, 3.84/7.68/10.75/20.74
- Efficiency (lm/W): 83/19/17
- Voltage: 24 VDC
- IP Rating: IP66
- 3-Year Warrant
- Using PC frosted cover, offering uniform illumination
- Adopt 2835LED
- Various specifications are available and support customization

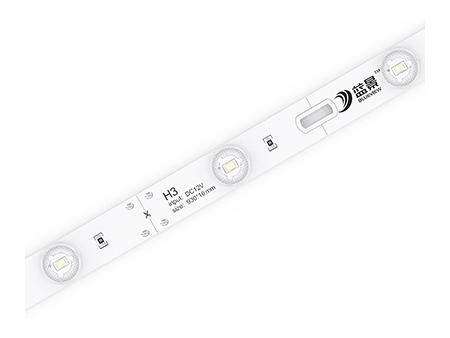

H3 DC LED Rigid Bar
- CCT: 3000-9000K
- LED Type: 3030
- Beam Angle: 180°
- Luminous Flux (lm/pcs): 780/910/1430/1560
- Power (W/pcs): 6/7/11/12
- Efficiency (lm/W): 130
- Voltage: 24 VDC
- IP Rating: IP20
- 5-Year Warrant
- Self-designed secondary lens for uniform light distribution
- Aluminum PCB for direct and quick heat dissipation
- Easy mounting
- Exclusive designed clips for easy installing and beauty appearance
- Single LED can be cut, multiple specifications, customization available

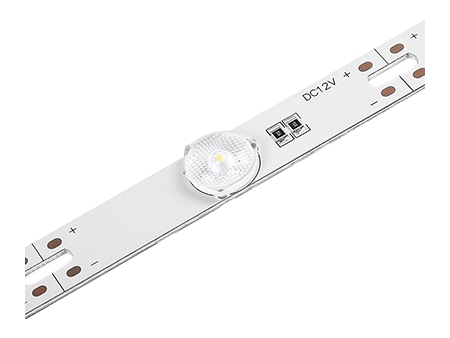

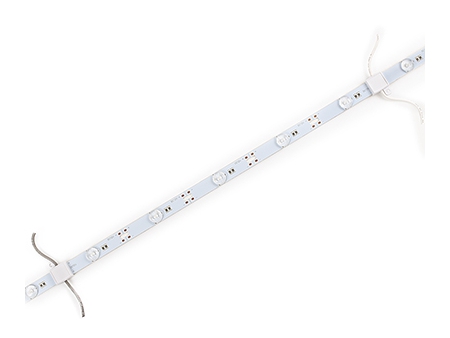

JYD2-C DC LED Rigid Bar
- CCT: 3000-20000K
- LED Type: 2835
- Beam Angle: 160°
- Luminous Flux (lm/pcs): 460/858
- Power (W/pcs): 4.8/9.6
- Efficiency (lm/W):90
- Voltage: 12 VDC
- IP Rating: IP60
- 3-Year Warrant
- EPISTAR chips
- Adopt 9V 2835 LED
- Special secondary light dissipation lens with uniform light distribution
- Adopt aluminum PCB is easy to dissipate heat
- SM-2A connector, easy to install
- Available in 5 leds/50cm, 10 leds/100cm

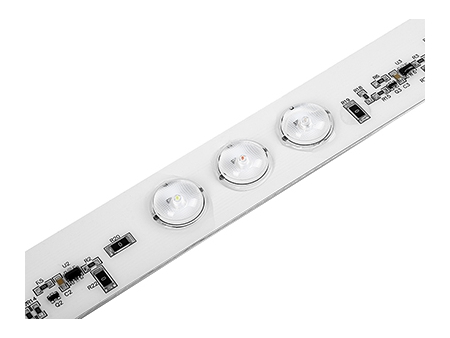

QTD8 DC LED Rigid Bar
- Light Color: Full-color
- Beam Angle: 170°
- Luminous Flux (lm/pcs):500
- Power (W/pcs):＜12
- Efficiency (lm/W):42
- Voltage: 24 VDC
- IP Rating: IP60
- 3-Year Warrant
- Input voltage: DC24V
- Osram single color LED, color mixing well, excellent light performance and stability
- Can be connected with external controller, and achieve full-color effect
- Beam angle 170°, excellent light effect, suitable for slim light box
- Aluminum PCB and backside with heat conductive adhesive tape, better heat diffusion
RGBW-YD8 DC LED Rigid Bar
- Light Color: Red, Green, Blue, White, RGBW
- Beam Angle: 170°
- Luminous Flux (lm/pcs): 68/462/26/319/851
- Power (W/pcs): 3.5/3.8/3.8/3.6/14.5
- Efficiency (lm/W): 19.2/121/6.8/88.1/58.5
- Voltage: 24 VDC
- 3-Year Warrant
- Input voltage: DC24V
- Osram LED, excellent performance and stability with great color mixing
- Connected with external controller for full-color effect
- 170° beam angle for more uniform lighting, ideal for slim lightbox
- Aluminum PCB with heat conductive adhesive on back for better heat dissipation
YD2-C DC LED Rigid Bar
- Light Color: White
- CCT: 3000-20000K
- Beam Angle: 160°
- Luminous Flux (lm/pcs):432/864
- Power (W/pcs):4.8/9.6
- Efficiency (lm/W):90
- Voltage: 12 VDC
- IP Rating: IP60
- Adopt 9V, led SMD 2835
- Special secondary light dissipation lens with uniform light distribution
- Adopt aluminum PCB, easy to dissipate heat
- SM-2A connector, easy to install
- Available in 5 leds/50cm,10 leds/100cm
YD7 3.0 DC LED Rigid Bar
- Light Color: White
- CCT: 6500-7000K
- Beam Angle: 160°
- Luminous Flux (lm/pcs): 357/708/1375
- Power (W/pcs): 3.7/7.5/15
- Efficiency (lm/W): 155/310/620
- Voltage: 24 VDC
- IP Rating: IP60
- 5-Year Warrant
- Nichia LED with Vf=6V, high-power 1W, 3030 package
YD8-J DC LED Rigid Bar
- Light Color: White
- LED Type: 2835
- CCT: 2200-6500K
- Beam Angle: 180°
- Luminous Flux (lm/pcs):330/670
- Power (W/pcs):2.4/4.8
- Efficiency (lm/W):140
- Voltage: 24 VDC
- IP Rating: IP20
- 5-Year Warrant
- Adopt special secondary light distribution lens, even illumination
- Aluminum PCB board is adopted for direct heat dissipation
- Multiple specifications available, support customization
YZ9 DC LED Rigid Bar
- Light Color: White
- LED Type: 3535
- CCT: ＞6400K
- Beam Angle: 10′45°
- Luminous Flux (lm/pcs):741/1235/1424
- Power (W/pcs):7.2/11.76/13.44
- Efficiency (lm/W):103/105/106
- Voltage: 24 VDC
- IP Rating: IP66
- 3-Year Warrant
- Can use a dimmer
- Use aluminum cover, better heat dissipation
- Adopt optical lens and secondary light distribution design
- Various specifications are available and support customization
