DC EDGE-LIT LED Rigid Bar
Request a Quote

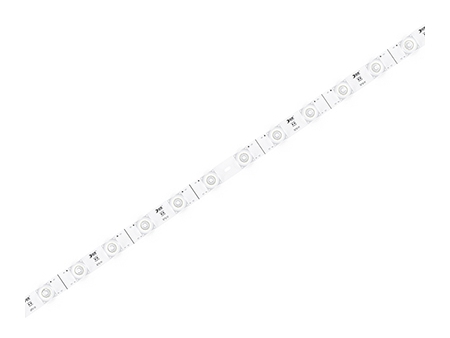

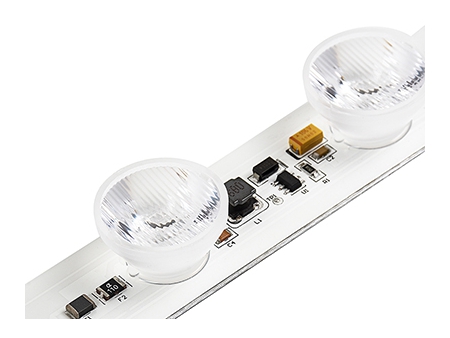

BP2-W DC LED Rigid Bar
- Light Color: White
- CCT: 6400-7700K
- Beam Angle: 12′24°
- Luminous Flux (lm/pcs):1326/2386
- Power (W/pcs):15.6/28.08
- Efficiency (lm/W):85
- Voltage: 24 VDC
- Suitable for edge-lit lightbox with width less than 2m
- Secondary optical lens for uniform light distribution
- Cuttable and easy to install
- Multiple length optional, customizable

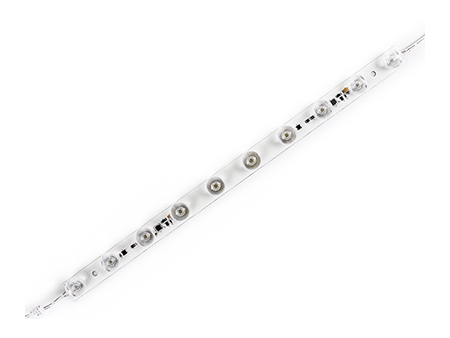

BPS1-S DC LED Rigid Bar
- Light Color: White
- LED Type: 3535
- CCT: ＞6400K
- Beam Angle: 7*30°
- Luminous Flux (lm/pcs):984/1620/1872/1920
- Power (W/pcs):8.2/13.5/15.6/16
- Efficiency (lm/W):120
- Voltage: 24 VDC
- IP Rating: IP60
- 5-Year Warrant
- SAMSUNG 3535 SMD
- High efficacy up to 120lm/W
- High brightness and small voltage drop of single bar, radiation-free
- Lighting by both the positive and reverse wiring of power supply
- Stable and reliable performance, easy installation
- 4 specification options

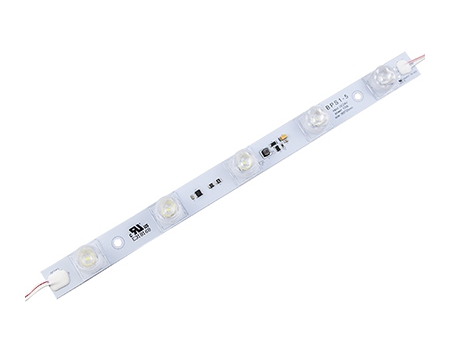

BPS300 DC LED Rigid Bar
- Light Color: White
- LED Type: 3535
- CCT: 6500K
- Beam Angle: 8*15°
- Luminous Flux (lm/pcs): 810/1620
- Power (W/pcs):10.8/21.6
- Efficiency (lm/W): 90
- Voltage: 24 VDC
- IP Rating: IP60
- 4-Year Warrant
- Adopt high quality 3535 LED
- High brightness of single bar
- Secondary optical lens for uniform light
- Stable and reliable performance, easy installation

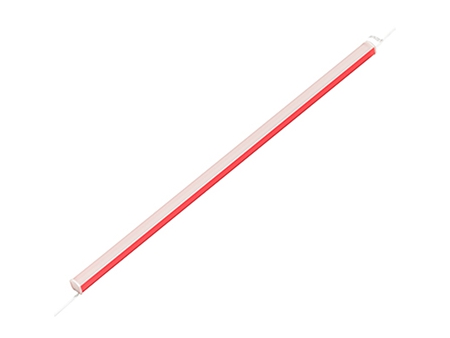

FB-XR DC LED Rigid Bar
- Light Color: Red
- LED Type: 2835
- CCT: 620-625K
- Beam Angle:99*104°
- Luminous Flux (lm/pcs):122/243/486/567
- Power (W/pcs):4.05/8.1/16.2/18.9
- Efficiency (lm/W):30
- Voltage: 24 VDC
- IP Rating: IP66
- 5-Year Warrant
- Exclusive ultra-narrow design.
- Adopt secondary light distribution design;
- A variety of specifications are optional, support customization;

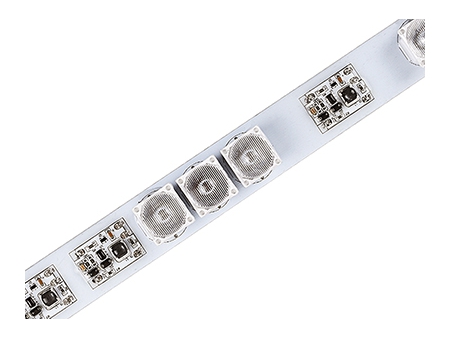

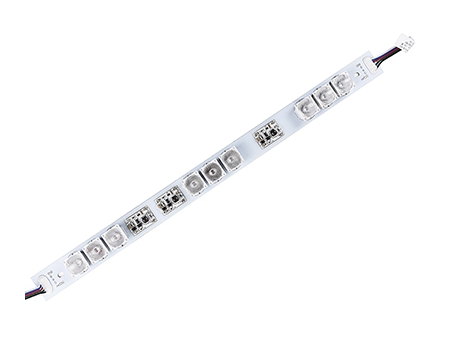

QBPS-RGB DC LED Rigid Bar
- Light Color: Full-color
- LED Type: 2535
- Beam Angle:10*60°
- Luminous Flux (lm/pcs):800
- Power (W/pcs):≤19
- Efficiency (lm/W):42
- Voltage: 24 VDC
- IP Rating: IP66
- 3-Year Warrant
- Input Voltage: DC24V
- CREE single color LED, color mixing well, excellent light performance and stability
- Can be connected with external controller, and achieve full-color effect
- Beam angle 10*60°, better light effect and longer shooting distance
- Aluminum PCB and backside with heat conductive adhesive tape, better heat diffusion
