DXDK950F, Full-Servo 4-Side Seal Sachet Packaging Machine for Powder
Request a Quote
Pharmaceutical Packaging Machinery Since 1998
- Max. packaging speed: 400 packs/min
- Suitable for powder and liquid packaging using composite films with four-side sealing
The sachet packaging machine features full-servo motor drive and PLC control. With complete functions, customizable tooling based on user requirements, high speed, and stable performance, it is suitable for automatic small-sachet packaging of free-flowing, non-adhesive powder materials requiring precise dosing in the pharmaceutical, food, and daily chemical industries. Typical applications include medicinal powders, flour, coffee powder, starch, milk powder, and chemical powders.
As a multi-lane, multi-channel system, the machine is both economical and highly efficient, making it a preferred choice for a wide range of users.

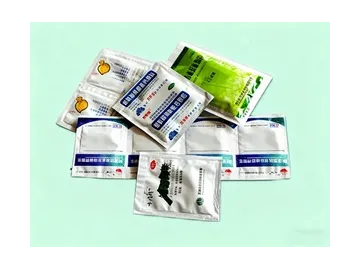

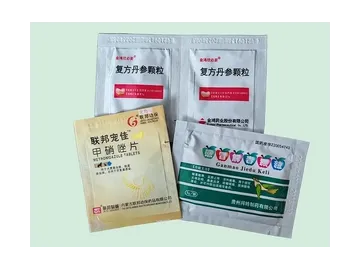

Packaging Samples
Features
- Four-side sealing with simultaneous multi-lane sachet packaging
- Full-servo bus control system, offering reliable performance, easy operation, and high packaging efficiency
- Photoelectric tracking of printed registration marks to ensure accurate front-and-back pattern alignment
- Filling, longitudinal and transverse sealing, batch coding, tear line forming, and cutting functions adjustable via the HMI
- Stepless bag length adjustment without mold replacement when changing sachet length
Technical Specifications
| Film thickness | 0.05–0.1 mm |
| Cutting frequency | 20–60 cuts/min (adjustable) |
| Packing dose | Powder 2–20 g/sachet |
| Bag length | 50–120 mm |
| Bag width | 65–120 mm |
| Max. film width | 950 mm |
| Max. packaging speed | 400 packs/min |
| Max. number of longitudinal lanes | 10 sachets |
| Air consumption | 3.2 L/h |
| Installed power | 18.3 kW |
| Power supply | 380 V, 50 Hz |
| Dimensions (L*W*H) | 1500 × 1540 × 2200 mm |
| Weight | 1200 kg |
Production Process
-
- Feeding station
-
- Sealing station
