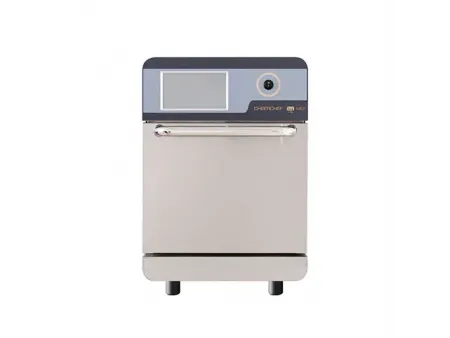

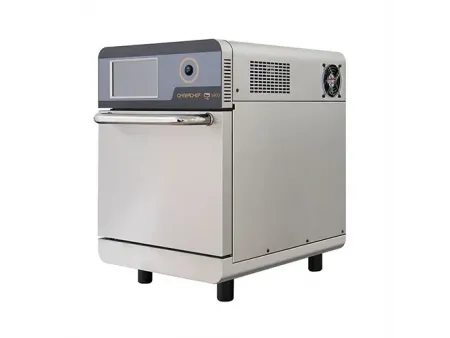

High-Speed Oven, 17L
SACO V2
Microwave Convection Impingement Boosted Heating Rapid Preheating & Cooling Down Built-in Catalyst Converter Smart Menu System
Combines microwave, convection, and impingement heating to cook up to 20 times faster than conventional methods.
- Power Supply: 220 V (Standard) / 380 V (Optional for High Power)
- Temperature Range: 5–270 °C (41–518 °F)
Why Choose SACO V2?
Ensures highly consistent food output across different locations through programmed cooking stages.
Menus can be updated centrally via internet, allowing headquarters to adopt changes instantly to individual stores.
Cooks up to 20 times faster than conventional methods while keeping energy consumption and space requirements low.
How It Works
- 1 Forced convection
- 2 Variable-speed impingement air
- 3 Upper heating system
- 4 Catalytic converter for grease and odor breakdown
- 5 Blower motor
- 6 Integrated microwave heating system
- 7 Lower heating system
- 430 stainless steel exterior
- Cool-to-touch outer surfaces
- 304 stainless steel interior
- Insulated cooking chamber
- Removable metal rack and bottom jet plate
- Removable turntable (optional)
Key Features
- User-friendly touchscreen interface.
- Up to 432 programmable menus (6 stages each).
- PC-based menu programming software.
- Remote menu transfer via internet & USB upload.
- Built-in self-diagnostic system.
- Hybrid heating: Microwave Convection Impingement.
- Ventless design with built-in catalytic converter.
- Rapid preheating & cooling (within 12 minutes).
- Variable-frequency stepless speed control.
- Lower energy consumption than conventional ovens.
- Compact width (40 cm) with large 17L chamber.
- Capable of baking a 10-inch pizza.
- 304 stainless steel interior & 430 exterior.
- Cool-to-touch outer surfaces.
- Removable rack and bottom plate for easy cleaning.
Dimensions and Specifications
| Models | | | | | |
| Power class | Standard | Medium | Medium | High | High |
| Power supply | Single phase | Single phase | Single phase | Single phase | Single phase or 3-phase |
| Max current | 13 A | 15 A | 16 A | 20 A | 30 A or 20 A |
| Max input power | 2900 W | 3300 W | 3500 W | 4500 W | 6500 W |
| Max microwave output power | 1050 W | 1050 W | 1050 W | 1050 W | 2100 W |
| Impingement heating power | 2750 W | 2950 W | 3500 W | 4200 W | 5100 W |
| Combined microwave impingement power | 1050 W 1150 W | 1050 W 1350 W | 1050 W 1900 W | 1050 W 2600 W | 2100 W 3500 W |
| Avg power consumption (operating) | 1300 W | 1400 W | 1500 W | 1700 W | 2200 W |
| Avg power consumption (standby) | 400 W | 500 W | 600 W | 700 W | 800 W |
| Avg noise (operating) | 43 dB | 43 dB | 43 dB | 43 dB | 43 dB |
| Avg noise (standby) | 53 dB | 53 dB | 53 dB | 53 dB | 54 dB |
| Working principle | microwave convection impingement air catalytic conversion smart menu system rapid preheating rapid cooling | ||||
| Display | 7-inch touchscreen | ||||
| Temperature modes | 3 temperature modes | ||||
| Airflow configuration | bi-directional airflow (top bottom) | ||||
| Pre-programmed recipes | 432 recipes | ||||
| Recipe programming | multi-stage programming, up to 6 cooking stages per recipe | ||||
| Temperature setting | 5–270 °C (5 °C increments), 41–518 °F (9 °F increments) | ||||
| Recommended max set temperature | ≤260 °C (500 °F) | ||||
| Time setting | 00:00–59:50 (10-second increments) | ||||
| Microwave power setting | 0–100% (10% increments) | ||||
| Fan speed setting | 10–100% (1% increments) | ||||
| Programming & loading | menu editing via oven interface or PC, USB transfer, image support, remote menu transfer via internet | ||||
| Overall dimensions | ||
| Width | 15.87 in | 403 mm |
| Depth | 23.58 in | 599 mm |
| Height | 23.94 in | 608 mm |
| Net weight (single / dual microwave) | 145.5/172.0 lb | 66/78 kg |
| Cooking chamber | ||
| Chamber width | 13.19 in | 335 mm |
| Chamber depth | 10.83 in | 275 mm |
| Chamber height | 7.28 in | 185 mm |
| Chamber volume | 0.60 cu ft | 17 liters |
| Installation clearance | ||
| Top clearance | 1.97 in | 50 mm |
| Side clearance | 0.98 in | 25 mm |
| Packaging dimensions | ||
| Width | 17.44 in | 443 mm |
| Depth | 29.76 in | 756 mm |
| Height | 29.17 in | 741 mm |
| Gross weight (single / dual microwave) | 172.0/224.9 lb | 78/102 kg |
A compact high-speed oven delivers strong output while occupying minimal counter space. This makes it suitable for retail coffee bars where fast and efficient hot food is expected in a limited space.
A ventless compact oven allows startup brands to avoid complex kitchen modifications. This allows faster launching of operations, while initial investment and setup costs remain under control.
The compact, ventless high-speed cooking oven is suitable for bookstores and other non-traditional foodservice spaces to add snack offerings easily. No major layout changes or ventilation systems are required, while food quality remains consistent.
